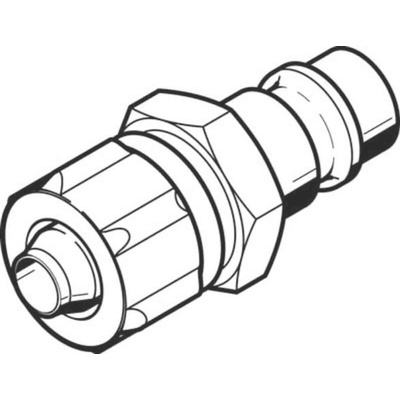

KS4-CK-4, Festo Pneumatic Quick Connect Coupling

Festo Pneumatic Quick Connect Coupling, 2.9mm Nominal Size, 252L/min Nominal Flow Rate - KS4-CK-4

Choose this quick connect coupling from Festo to reliably join pneumatic devices to your system. With its simple push-in connection method, it speedily links your equipment without the need for tools. The unit achieves a 252L/min nominal flow rate, so it easily handles intense air loads, giving you efficient air-powered performance even with heavy-duty appliances. A 2.9mm nominal size means the coupling is compatible with many common pneumatic machines for versatility. As it supports operating pressures between -0.95 and 12 bar, you can be sure of its reliability in high-pressure systems.

• Union nut tightens when installed for a secure connection
• Audible click confirms when there's a complete connection to ensure efficient airways
• Supports lubricated compressed air for added versatility
• Wide operating temperature range between -10°C and +60°C for resistance to challenging industrial conditions

Applications

• Vacuum vessels
• Control devices
• Clamping machines
• Packing industry

Can I use this quick connect coupling in damp conditions?

Although this coupling plug isn't recommended for long-term use in damp areas, its corrosion-resistant nickel-plated brass housing protects airways against limited exposure.

Datasheet - KS4-CK-4

Catalogue - Coupling Sockets

Brochure - Tubing And Fittings
