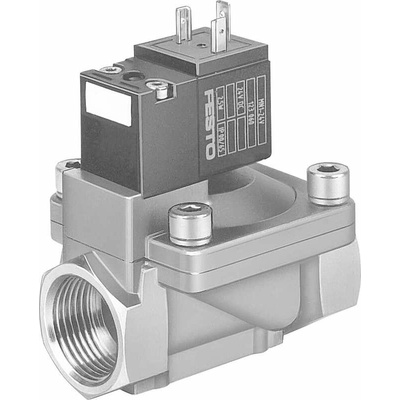

Festo Solenoid Valve MN1H-2-3/4-MS, 2 port(s) , NC, 110/230/24 V, 3/4in

Festo Solenoid Valve, G 3/4, 230V DC - MN1H-2-3/4-MS

For reliable control of the flow of air in your pneumatic system, turn to this solenoid valve from Festo. This device is pilot-operated to handle high pressure ranges up to 10 bar. It uses a diaphragm to ensure efficient opening and closing action and a soft seal to prevent leaks. A simple plug-in design makes it quick to connect to your system, and it works with 110V DC, 230V DC and 24V AC supply voltages for flexibility. The strong brass body and alloy steel screws are highly corrosion-resistant for use in demanding applications.

• Wide operating temperature range of -10°C to +60°C for use in harsh environments
• Suitable for assembly in any position for increased flexibility
• IP65 (ingress protection) rating means it's dust-tight and water-resistant
• Has a 2/2 (two-position, two-port) normally closed function for simple airflow control

Applications

• Pneumatic systems
• Safety devices
• Food and agriculture industry

Is this solenoid valve suitable for in-line installation?

Yes, it has a straight body shape to fit onto your pipework with two connectors in a standard 3/4-inch size.

Datasheet - MN1H-2-3/4-MS

Catalogue - MN1H-2-3/4-MS
