MS6-LWS-1/4-U-V, Festo 40 l/sec. G 1/4 Water Separator, 6μm filtration, 2bar to 12 bar

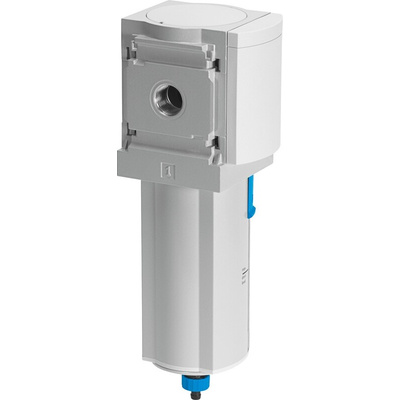

Festo Water Separator, PA Material Screen, Integrated Bowl Guard - MS6-LWS-1/4-U-V

Is moisture dampening the performance of your pneumatic setup? Add this water separator from Festo to your network. It keeps things running smoothly by removing 99% of water from the supply, so there's no risk of ice blocking your pipework or corrosion interfering with the flow. After collecting up to 38ml of condensate, the inbuilt drain automatically comes into play. This saves you from having to manually remove the wastewater after each operating cycle. A die-cast aluminium housing holds true in harsh conditions, so you can count on it over the long haul.

Features & Benefits

• Operating pressure range between 2 and 12 bar suits lower-pressure applications
• 6μm filter size removes particulates effectively
• Industry-standard G1/4 port for wide compatibility with pneumatic connections
• Performs reliably in temperatures between +5°C and +60°C
• NBR seals keep out contaminants while maintaining system pressure

Applications

• Aerospace engineering
• Pharmaceutical production
• Mining industry

How heavy is this unit?

This water separator only weighs 820g, so it keeps your setup free of unnecessary strain.

What's the best position for assembly?

The device operates optimally when assembled vertically, and offers a handy ±5° leeway.
