MS6-SV-1/2-D-10V24-2M8, Festo Pneumatic Soft Start Valve, 4300L/min, G 1/2 Female, 6mm Tube Size 10 bar

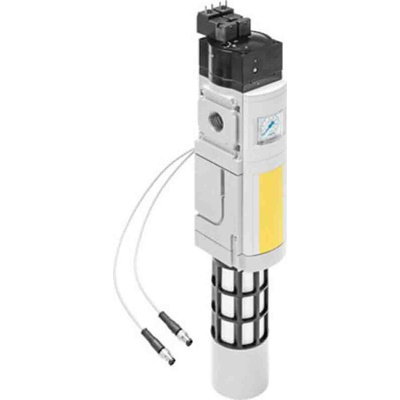

Festo Pneumatic Soft-start Valve, G 1/2 Female - MS Series - MS6-SV-1/2-D-10V24-2M8

This Festo soft-start valve lets you gradually increase airflow downstream when you're starting pneumatic equipment after repair or installation. Soft-starts protect your compressed air system by preventing damage from unexpected start-ups or sudden releases of pressure. A solenoid actuator controls the internal valve position, and you can also manually adjust the rate of release. Thanks to the valve's analogue dial pressure gauge, it's easy to monitor your systems at a glance.

• Standard nominal flow rate of 4300 l/min
• Outlet tube size of 6 mm
• Minimum operating pressure of 3.5 bar
• Maximum operating pressure of 10 bar
• Standard flow rate (for exhaust of 0-6 bar) of 9000 l/min
• G standard supply inlet port thread, female
• Supply inlet port thread size of 1/2 in
• Product weight of 2110 g
• Operating temperature range of -10°C to +50°C
• Aluminium die-cast housing
• NBR (nitrile rubber) seal for resistance to oil and chemicals
• High-alloy steel piston rod is non-corrosive

Range Information

• Festo's MS series products feature built-in safety valves to protect your pneumatic equipment from sudden pressure release
• They are energy-efficient and include sensors for easy monitoring of pressure and flow rate
• Available in sturdy metal or lightweight polymer housings

The Festo soft-start/quick exhaust valve MS6-SV-1/2-D-10V24-2M8 Series MS has size 6 and grid dimension 62 mm.

Safety function (* Exhausting, * Prevention of unexpected start-up (pressurisation))
Safety Integrity Level (SIL) (* Exhausting / SIL 3, * Prevention of unexpected start-up (pressurisation)/SIL 3)

Datasheet - MS6-SV-1/2-D-10V24-2M8

Datasheet MS6-SV-1/2-D-10V24-2M8 08.03.2021

Catalogue - MS6-SV-1/2-D-10V24-2M8

InstructionSheet - MS6-SV-1/2-D-10V24-2M8
