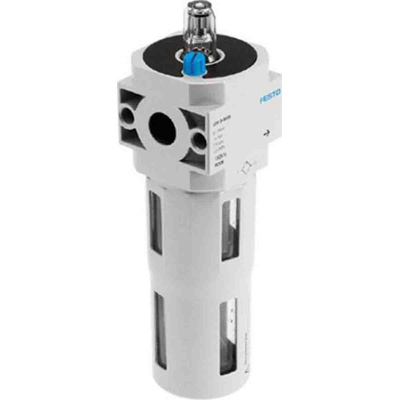

LOE-D-MIDI, Festo Pneumatic Air Lubricator, 0bar to 16 bar, D Series

Festo LOE-D-MIDI Lubricator - D Series - LOE-D-MIDI

Use this lubricator from Festo to keep your pneumatic tools and hydraulic cylinders in good working order. The lubricator operates in conjunction with a filter regulator by supplying a finely dosed quantity of pneumatic oil to compressed-air systems. This reduces the friction of moving parts such as motors, pistons and gears, as well as sliding surfaces. Less friction leads to smoother operation and more accurate speed control, which in turn reduces machinery maintenance costs.

• Minimum flow rate for lubricator function of 8 L/min
• Assembly position of vertical +/- 5°
• Proportional standard mist lubricator design structure
• Operating pressure of 0 bar to 16 bar
• Maximum oil capacity 110 cm³
• Metal bowl guard
• Operating temperature range of -10°C to +60 °C
• Midi size

Range Information

• Festo's D series is a range of modular-designed regulators, filters and lubricators that are all compatible with each other
• These components can be easily added or removed to a pneumatic air filtering system without affecting the unit's overall sealing performance
• All D series air-preparation units feature a robust metal design and are suitable for use in industrial pneumatic applications

The Festo lubricator LOE-D-MIDI with metal bowl guard. The modern alternatives can be found by entering the first four characters of the type code in the search field.

Size Midi
Series D
Assembly position Vertical +/- 5°
Design structure proportional standard mist lubricator
Max. oil capacity 110 cm3
