MS6-SV-1/2-E-10V24-AG, Festo Pneumatic Soft Start Valve, 4300L/min, G 1/2 Female, 6mm Tube Size 10 bar

Festo Pneumatic Soft-start Valve, G 1/2 Female - MS Series - MS6-SV-1/2-E-10V24-AG

If you're performing maintenance on a pneumatic system, this soft-start valve from Festo is a must-have tool for the job. You can use it to exhaust air from your system before you begin work. It's also ideal for gradually allowing a low flow of compressed air back into the system once repairs or checks are complete. This ensures that the actuators in your system are brought up to full operating pressure slowly and safely.

• Grid dimension of 62 mm
• G 1/2 in female inlet port
• Outlet tube size of 6 mm
• Maximum operating pressure of 10 bar
• Flow rate of 4300 l/min
• Exhaust rate of 9000 l/min
• Operating temperature range of -10°C to +50°C
• IP65 rating for protection against dust and nozzle-projected water

Range Information

• Festo's MS series is a range of soft-start and exhaust valves for pneumatic systems
• The units can be used as standalone devices or as components in a modular system
• The nominal flow rate of the MS series ranges from 4300 l/min to 16500 l/min
• The exhaust rate of the MS series ranges from 7600 l/min to 20500 l/min

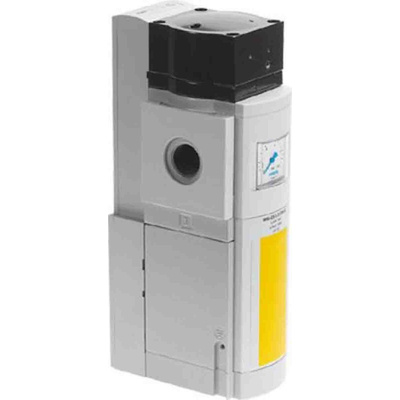

The Festo soft-start/quick exhaust valve MS6-SV-1/2-E-10V24-AG With pressure gauge.

Series MS
Size 6
Grid dimension 62 mm
Safety function (* Exhausting, * Prevention of unexpected start-up (pressurisation))
Safety Integrity Level (SIL) (* Exhausting / SIL 3, * Prevention of unexpected start-up (pressurisation)/SIL 3)

Datasheet - MS6-SV-1/2-E-10V24-AG

Catalogue - MS6-SV-1/2-E-10V24-AG

InstructionSheet - MS6-SV-1/2-E-10V24-AG
