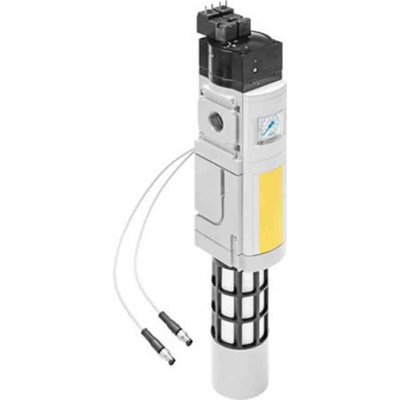

MS6-SV-1/2-D-10V24-2M8-SO-AG, Festo Pneumatic Soft Start Valve, 4300L/min, 6mm Tube Size 10 bar

Festo Pneumatic Soft-start Valve, 10 bar - MS Series - MS6-SV-1/2-D-10V24-2M8-SO-AG

Do you need to safely exhaust air from your pneumatic system before performing maintenance? Or ramp up the pressure in your system gradually to avoid damaging components once maintenance is complete? This pneumatic soft-start valve from Festo is the perfect tool for both jobs. Sensors detect the downstream pressure and automatically adjust the valve, so it's easy to ensure the system is exhausted or re-pressurised in a controlled, safe manner. It can be used as either a standalone device or as a component in a modular system.

• Grid dimension is 62 mm
• Inlet port type G 1/2 in female
• Outlet tube size of 6 mm
• Maximum operating pressure of 10 bar
• Flow rate is 4300 l/min
• Exhaust rate of 9000 l/min
• Operating temperature range of -10°C to +50°C
• IP65 rating for protection against nozzle-projected water and all dust

Range Information

• Festo's MS series is a range of safety valves with soft-start and exhaust functions
• They can be used as standalone devices or as part of a modular service unit
• They include automatic pressure and flow-rate sensors for improved efficiency and ease of use

The Festo soft-start/quick exhaust valve MS6-SV-1/2-D-10V24-2M8-SO-AG series MS has size 6.

Grid dimension 62 mm
Safety function (* Exhausting, * Prevention of unexpected start-up (pressurisation))
Safety Integrity Level (SIL) (* Exhausting / SIL 3, * Prevention of unexpected start-up (pressurisation)/SIL 3)
