MS4-LOE-1/4-R, Festo G 1/4 2200L/min Pneumatic Air Lubricator, 1bar to 12 bar, MS Series

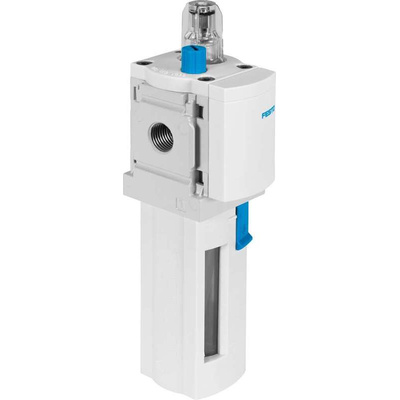

Festo Pneumatic Air Lubricator, Vertical Mounting, 30cm³ Maximum Oil Capacity - MS4-LOE-1/4-R

For smooth flow around your system, install this pneumatic air lubricator from Festo. It steadily releases a thin mist of oil into the air stream to cut the risk of friction and keep things running efficiently. The unit has a maximum oil capacity of 30cm³ so there's room for a sufficient supply to keep your machine well-oiled. It kicks in at a minimum flow rate of 40L/min and handles up to 2200L/min, so you can safely use it in your high-flow system.

Features & Benefits

• Adjustable assembly position of up to +/-5° from the verticle for flexibility
• PC bowl delivers thermal resistance for durability
• Tough aluminium die-cast body resists mechanical wear and resists corrosion to keep your medium clean

Applications

• Construction equipment
• Measuring instruments
• Bottling plants
• Marine engineering

What's the operating pressure capacity of this lubricator?

As this regulator handles an operating pressure range between 1 and 12 bar, you can safely use it in low-pressure and mid-pressure applications.

How do I mount this lubricator?

Thanks to the threaded structure, you can mount this regulator by fixing the G1/4 pneumatic connection to a port in your equipment.

Datasheet - MS4-LOE-1/4-R

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LOE Series
