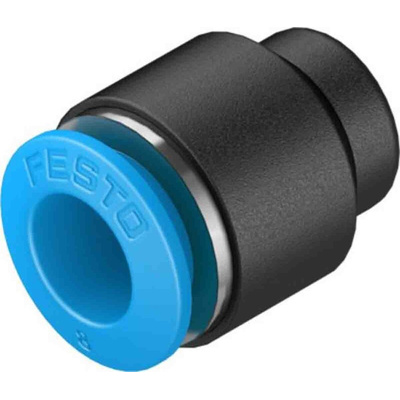

QSC-8-50, Festo PBT Tubing Cap for 8mm

Festo Tubing Cap, 8mm Tube Size, -0.95 to 6 Bar Operating Pressure - QSC-8-50

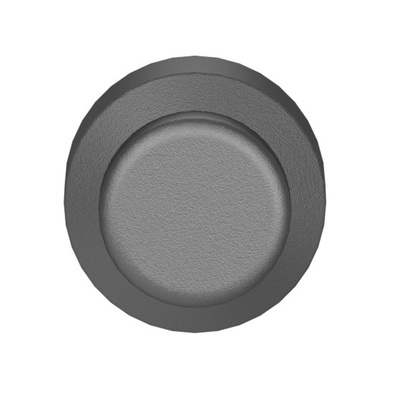

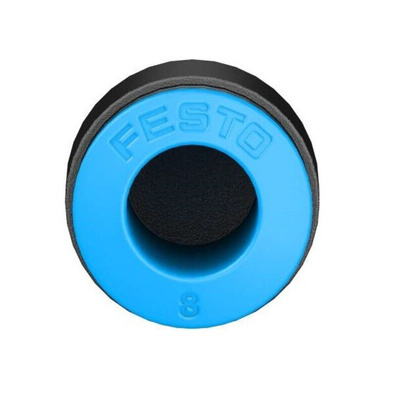

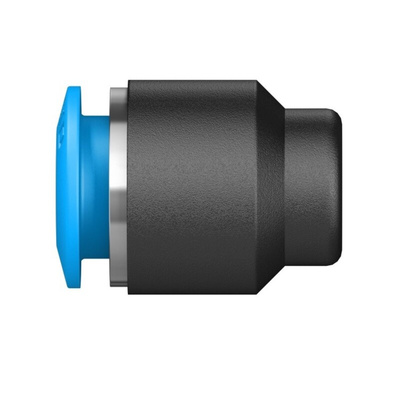

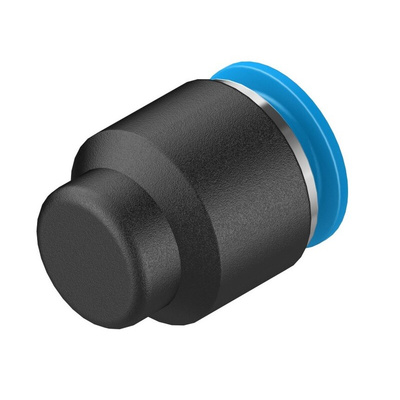

This tubing end cap from Festo lets you plug off an exposed tube in your pneumatic system. An operating pressure range between -0.95 and 6 bar makes it suitable for low-pressure applications. As it's designed to fit 8mm sized tubes and has a compact outer diameter of 16mm, it's a versatile option for smaller setups. For quick removal, the cap features a release ring that lets you unlatch the tube lock.

• Can be mounted in any position for flexible assembly
• NBR seal prevents leakage
• Wide operating temperature range between -10°C and +80°C to withstand harsh environments
• Tough PBT housing is resistant to hard impacts for durability

Applications

• Plumbing systems
• Food and beverage production
• Gas plants

How do I mount and remove this end cap?

This unit uses a push/pull method, so you can mount it by simply pushing it into your tube and remove it by pulling it out. It features a tube retaining claw made from high-alloy steel that helps maintain a stable hold on the tubing and offers resistance to corrosion for extended service life.
