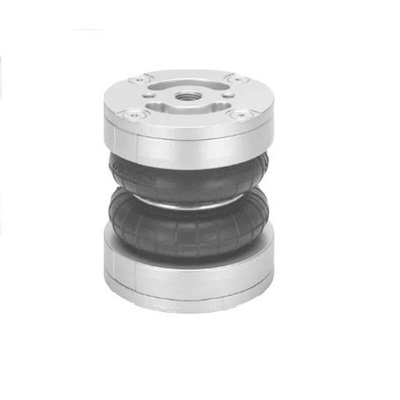

Festo Compact Air Bellows EB-80-45, 45mm Stroke

Festo Compact Air Bellows - EB-80-45 Series - EB-80-45

These air bellows from Festo are ideal for reducing noise and vibrations. You can use them as a driving or cushioning component in pneumatic systems in challenging or dusty settings. Their simple design consists of two metal connecting plates with attached rubber bellows. This ensures smooth and uniform movements with no jerking motion or stick-slip effect. As there are no sealing components or moving mechanical parts, these durable bellows are highly efficient and simple to maintain.

• Sturdy design for long service life
• Wide operating temperature range of -40°C to +70°C, for use in tough industrial settings
• Suitable for use in water for special applications like ducting

Application Information

• Material handling units
• Manufacturing industry
• Automotive sector

Do air bellows need a spring return?

Bellows cylinders don't need spring returns, as the reset is achieved by the application of external force.

How can air bellows be used as a driving component?

Bellows cylinders produce high forces with short strokes. When used with pressure and exhaust functions, the bellows cylinders operate as a driving component. As the stroke increases, the force generated is reduced in relation to the contractional force of the bellows.
