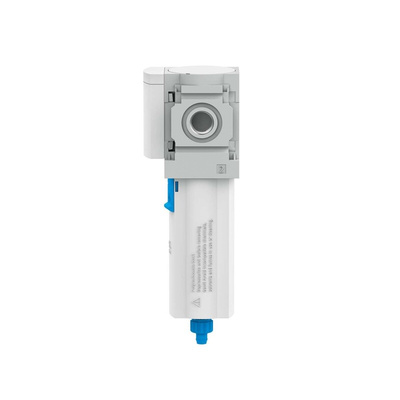

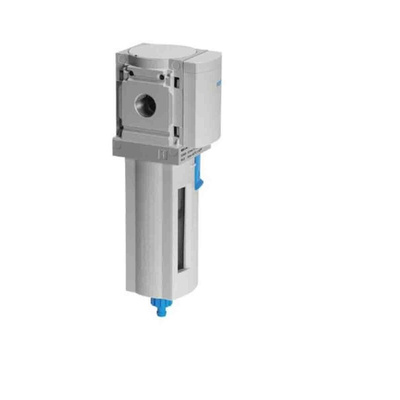

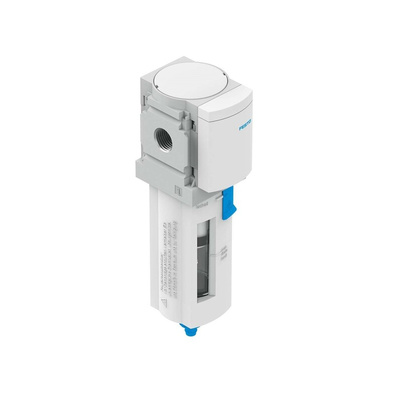

MS4-LFM-1/4-ARM, Festo MS series 0.01μm G 1/4 0bar to 14 bar Pneumatic Filter 360L/min max with Manual drain

Festo Pneumatic Filter, 0.01μm Filtration Size, Boron Silicate Filter Material - MS4-LFM-1/4-ARM

Maintain a clean system using this pneumatic filter from Festo. It's designed to remove contaminants from your equipment and support reliable performance. Thanks to a filtration size of 0.01μm, this unit removes even the tiniest particles to protect the system from dirt build-up. A broad operating pressure range between 0 and 14 bar means you can use it in both low-pressure and high-pressure environments, making it a versatile choice. This component comes with a condensate drain with a maximum volume of 19ml to catch water produced during the filtration process.

• Ambient operating temperature range between -10°C and +60°C to withstand harsh environments
• Can be vertically adjusted +/-5° for flexible assembly
• Rugged aluminium die-cast housing is resistant to impacts and corrosion for extended service life
• Maximum flow rate of 360L/min to withstand high-volume applications
• NBR seals are resistant to solvents and chemicals for added durability

Applications

• Medical equipment
• Marine industry
• Food production and packaging

How does this filter work?

This unit uses boron silicate fibres to traps contaminants and stop them from entering the system. This durable material is resistant to cracking, so is a long-lasting choice.

How effective is this pneumatic filter?

It has an efficiency rating of 99.9999%, which makes it highly effective even in demanding operations.
