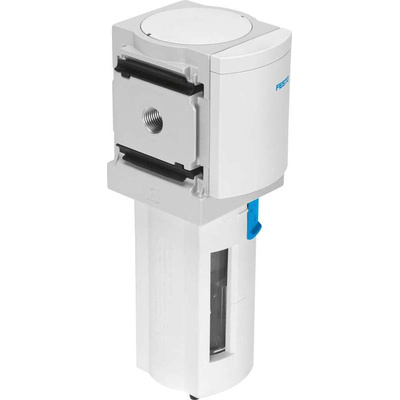

MS6-LFM-1/2-ARM, Festo MS series 0.01μm G 1/2 0bar to 20 bar Pneumatic Filter 900L/min max with Manual drain

Festo Pneumatic Filter, Left to Right Flow Type, 0 to 20 Bar Operating Pressure Range - MS6-LFM-1/2-ARM

Catch rogue particles as they move through your airflow with this pneumatic filter from Festo. With a filtration grade of 0.01μm, it traps even tiny bits of contamination to prevent friction, blockages and corrosion. An operating pressure range of 0 to 20 bar means it can safely handle the demands of low-pressure and high-pressure conditions in your machinery. Thanks to the built-in visual indicator that shows the differential pressure level, you can easily keep an eye out for changes in the output.

Features & Benefits

• Vertical assembly with a +/-5° tolerance for flexibility during setup
• Rugged aluminium die-cast housing stands up to corrosion
• Withstands harsh settings thanks to an operating temperature range of -10°C to +60°C
• NBR seals prevent leakage to maintain system efficiency

Applications

• Printing presses
• Manufacturing industry
• Power plants
• Packaging facilities

How efficient is this filter?

With an efficiency rating of 99%, you can rest assured the filter is getting on with its job effectively.

What type of element does this device have?

The filter element of this device is made from boron silicate fibre that effectively captures dirt particles to keep your airflow clean.
