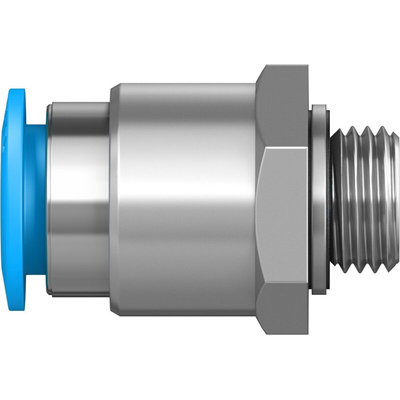

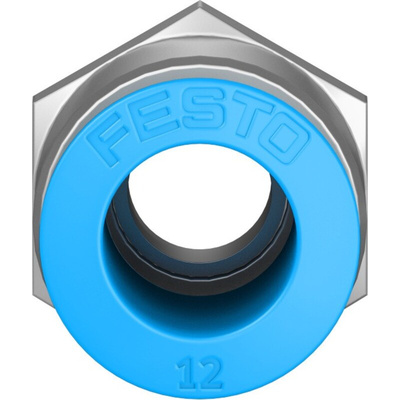

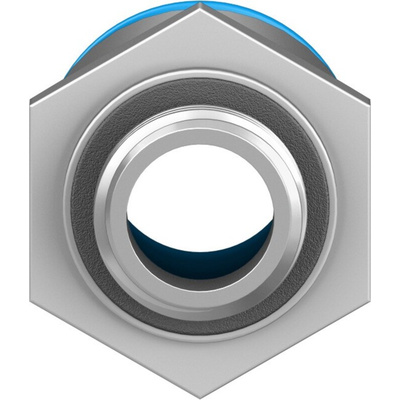

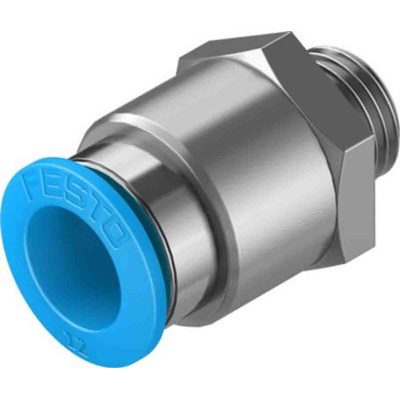

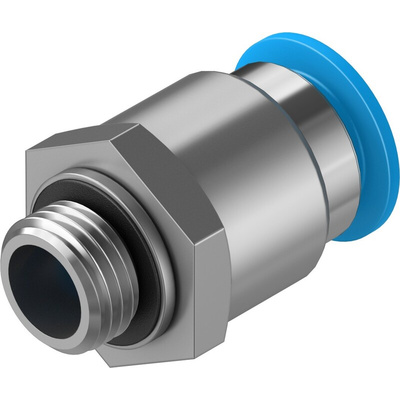

QS-G1/4-12-20, Festo Straight Threaded Adaptor, G 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style, 132042

Festo Straight Threaded Adaptor, Push-In 12mm, G1/4 - QS-G1/4-12-20

Save time connecting pneumatic pipes with this push-in adaptor from Festo. It's quick and easy to fit and release while guaranteeing a perfect seal between standard outer diameter tubing and the body of the fitting. A retaining claw within the component holds tubing securely without damaging its surface and also helps to safely absorb vibration and pressure surges. The nickel-plated brass housing is extremely resistant to corrosion, so there's little chance of the unit rusting, even when used in moist or harsh industrial environments.

• Fitting can be re-used a number of times, thanks to its replaceable sealing ring
• Can be aligned after assembly for ease of use
• Easily detached by simply pushing down on the fitting's releasing ring
• Wide operating pressure range of -0.95 bar to 6 bar

Applications

• Robotics
• Automotive manufacturing
• Assembly and production lines

What's the main advantage of using a push-in fitting?

The primary advantage of using a push-in fitting is the time you save on installation as no clamps, crimp sleeves or specialised tools are needed. This allows for an extremely quick connection with reduced effort and risk of injury.

What temperature range will this fitting tolerate?

This component is ideally suited to standard pneumatic applications where temperatures range from -10°C to +80°C.

Datasheet - QS-G1/4-12-20

Catalogue - QS-G1/4-12-20

Brochure - Tubing and Fittings Quick Reference
