QSM-M3-2, Festo QSM Series Straight Threaded Adaptor, M3 Male to Push In 2 mm, Threaded-to-Tube Connection Style, 133027

Festo Pneumatic Fitting, Straight Threaded Adapter, 0.8g Weight - QSM-M3-2

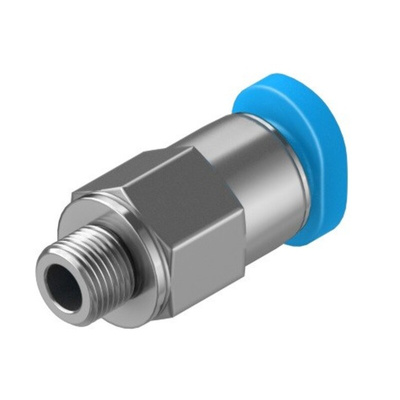

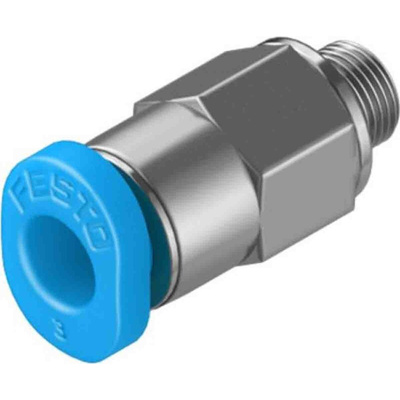

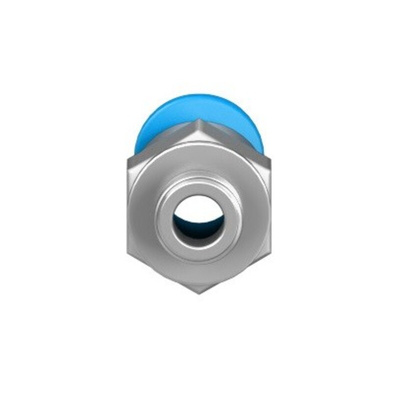

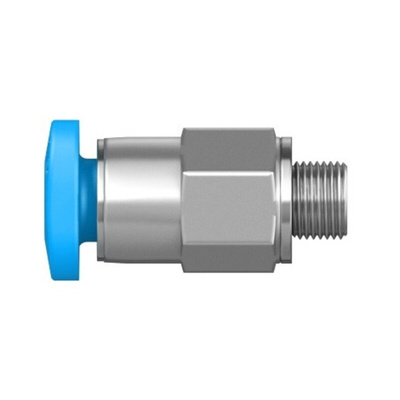

Need to create a flexible connection in an air-powered system where space is tight? Use this mini pneumatic fitting from Festo. It has a compact length of 12.1mm, so saves space in your pipeline. A push-in fitting at one end simplifies installation and helps to keep the connection secure. At the other end of the fitting, there's an M3 thread to create a firm line attachment. The hexagonal body aids tightening. As it's made of PBT and nickel-plated brass, this adaptor is strong and resistant to wear and corrosion.

• Works with compressed air in lubricated and unlubricated systems for flexibility
• Nitrile rubber ring creates a reliable seal to prevent leaks

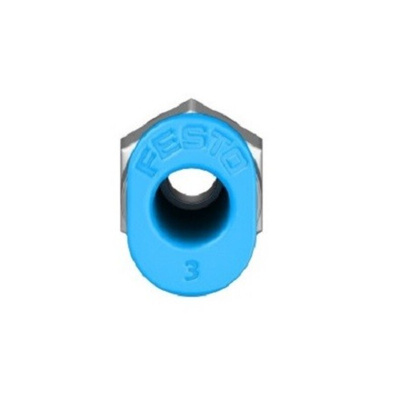

• Blue collar makes it easy to see where the fitting is located on a pipeline

Applications

• Industrial automation
• Assembly lines
• Chemical and pharmaceutical processing
• Automotive industry

What air pressures does this pneumatic fitting work with?

This pneumatic fitting has a temperature-dependent operating pressure between -0.95 and 14 bar. For safe operation at temperatures between -10°C and +80°C, a maximum pressure of 6 bar is recommended.
