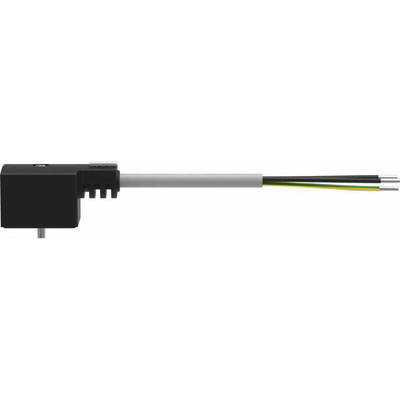

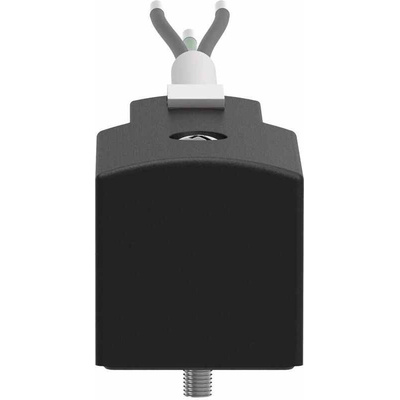

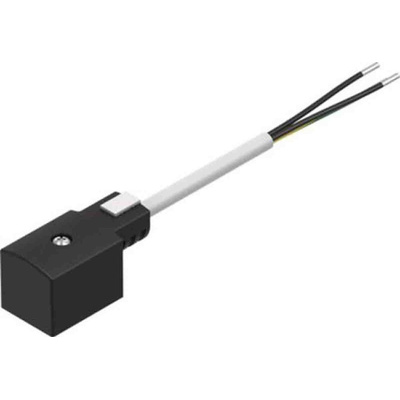

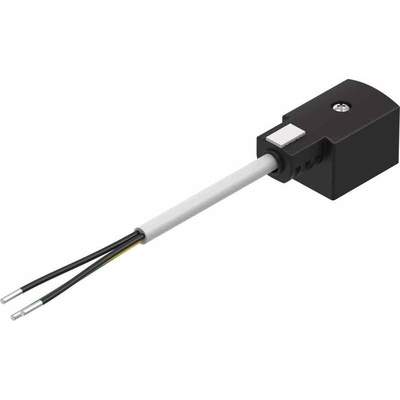

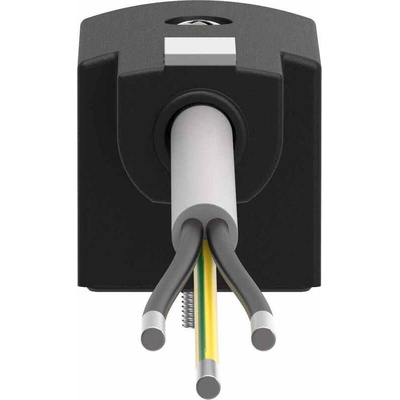

KMF-1-24DC-5-LED, Festo Plug Connector, KMF Series

Festo Plug Connector - KMF Series - KMF-1-24DC-5-LED

This plug connector from Festo is used to join valves in pneumatic systems. It has an LED switching position indicator that's suitable for use with automated factory machinery. The unit is supplied with a pre-assembled PVC (polyvinyl chloride) socket that's lightweight and highly resistant to abrasion. An IP67 rating for protection against dust and water means the connector can withstand high-pressure wash-downs. A cable is supplied with the component for easy installation.

• Yellow light colour
• Cable length of 5 m
• Mounting on solenoid valve with M3 central screw
• Plug socket electrical connection
• Nominal operating voltage of 24 V DC
• Cable diameter of 6 mm
• Bronze electrical contacts
• Polycarbonate and polyoxymethylene (POM) housing material
• Operating temperature range of -20°C to +80°C
• Weight of 320 g

Range Information

• Festo's range of KMF connectors is compatible with valves with an F solenoid coil and can be mounted via a central screw
• These units are available with three different cable lengths and with various rated operating voltages
• Protective earth connections are available with plug sockets for grounding

The Festo KMF series pre-assembled LED plug socket has a 5m cable length. This cable is suitable for F solenoids with M3 central screw in any assembly position . It has nominal operating voltage of 24 VDC.

Switching position indicator - LED
Electrical connection - Type C angled socket
Product weight - 200 g
