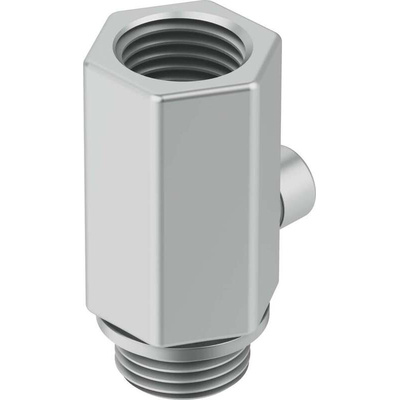

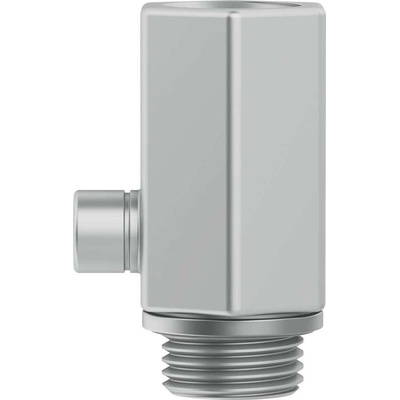

HAB-1/8, Festo B Non Return Valve G 1/8 Male Inlet, G 1/8 Female Outlet, 10bar

Festo Non-Return Valve, G1/8 Pneumatic Inlet and Outlet Connections, 165L/min Nominal Flow Rate - HAB-1/8

Keep the airflow in your pneumatic system in check using this non-return valve from Festo. It lets the air travel in a single direction and stops it from flowing back the other way. Thanks to threaded connections on its inlet and outlet sides, mounting this piece of kit to the ports in your machinery is a breeze. You can lubricate this valve to keep wear and tear from taking a toll on your equipment.

Features & Benefits

• Operating pressure range between 1 and 10 bar for safe use in low-pressure environments
• Can be assembled in any position for flexible setup
• Nominal size of 4.1mm to fit into small machine components

Applications

• Food production and packaging
• Chemical plants
• Water treatment facilities
• Hydraulic equipment

What's the operating temperature rating of this valve?

This valve has a broad operating temperature range between -20°C and +80°C, meaning it can take the heat in challenging conditions.

What material is this non-return valve made from?

This valve is made from an anodised wrought aluminium alloy that offers resistance to corrosion and heat, making it a durable choice for harsh industrial environments.
