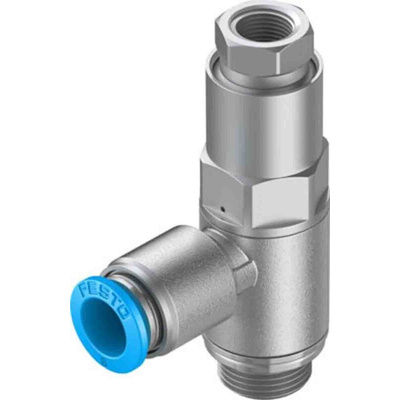

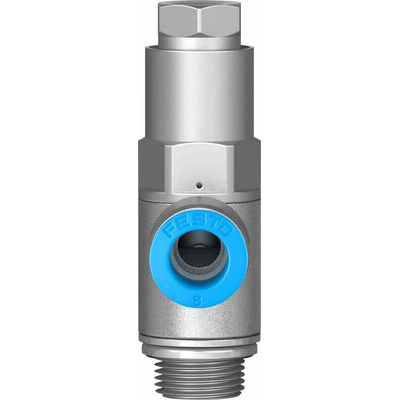

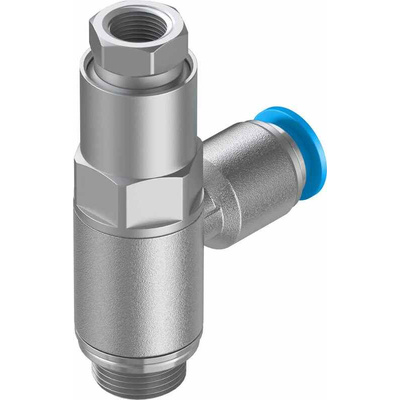

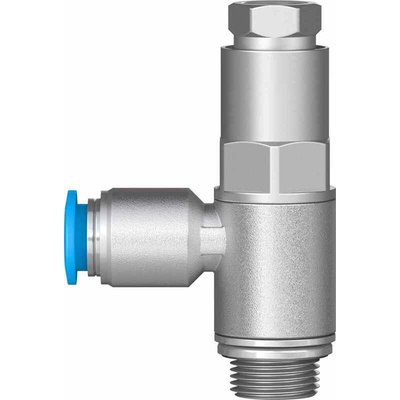

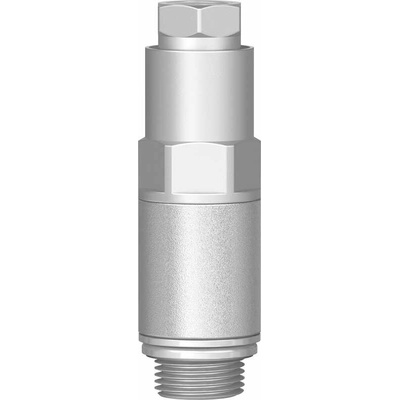

HGL-1/4-QS-8, Festo HGL Non Return Valve, 8mm Tube Inlet, G 1/4 Male Outlet, 0.5 → 10bar

Festo Non-Return Valve, 8mm Tube Inlet, 10 Bar - HGL-1/4-QS-8

Use this hardwearing non-return valve from Festo to protect your pumps and compressor equipment from damage caused by overflow and reverse backflow. It works by allowing airflow in only one direction and preventing contaminants from entering your pneumatic devices. This component has an anodised wrought aluminium alloy housing that's corrosion-resistant, so you don't have to worry about rust or decay. The seal and non-return sleeve are made of nitrile butadiene rubber, which prevents leakages and maximises performance.

• Maximum operating pressure of 10 bar makes it suitable for heavy-duty applications
• Wide operating temperature range of -10°C to +60°C for use in harsh environments
• Threaded outlets for easy and quick installation
• Contains no copper for fluid transmission that's free of corrosion and contaminants
• Can be mounted in any position for design flexibility

Applications

• High-pressure and low-pressure compressors
• Material handling equipment
• Gas plants

How do I install this component?

This component is easy to install. It has a push-in inlet port that you simply plug your tube into and threaded outlet ports that screw onto conduits or pipes.

Datasheet - HGL-1/4-QS-8

Brochure - The Festo Core Product Range

Catalogue - HGL-1/4-QS-8
