SE-1/8-B, Festo Quick Exhaust Valve, G 1/8 x 10 bar, Threaded, 5mm

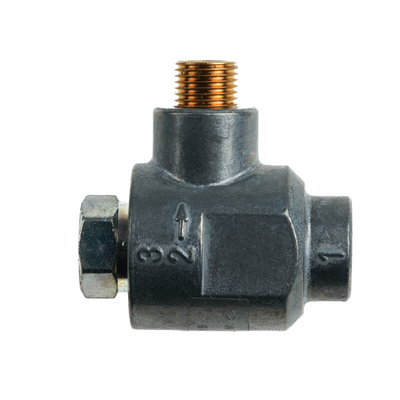

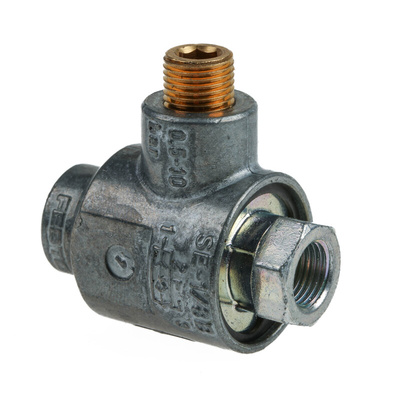

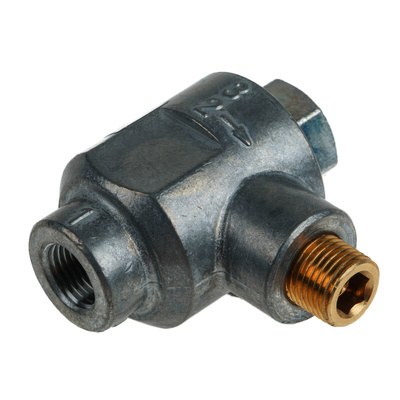

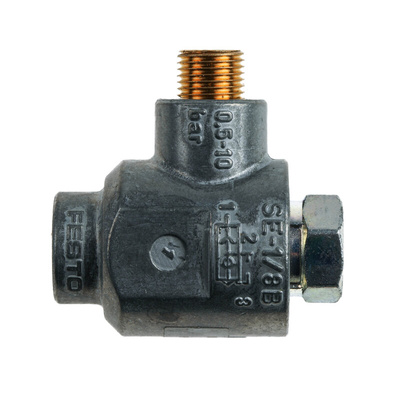

Festo Quick Exhaust Valve, G1/8, 5mm Tube Connections - SE-1/8-B

Increase the efficiency of your pneumatic cylinders with this durable quick exhaust valve from Festo. It works by channelling excess compressed air into the atmosphere instead of back into the cylinder, allowing the piston to extend further for greater productivity. A die-cast zinc housing is reliably durable and withstands corrosion, so you don't have to worry about rust when you use the unit in demanding environments. A pressure limit of 10 bar makes this component ideally suited to a wide range of industrial applications.

• Nitrile butadiene rubber (NBR) seals to prevent air leakage for optimal performance
• Threaded mounting type is easy to fit, saving time and energy
• Lubricated operation is possible to improve efficiency and extend the lifespan
• Light weight of 75g won't add strain to your setup
• Wide operating temperature range of -20°C to +75°C suitable for use in harsh environments

Applications

• High and low-pressure compressors
• Gas pumps
• Water and sewage treatment plants

What size of fittings does this valve have?

This quick exhaust valve has three pneumatic connection ports, all with standard G1/8 threaded connectors.
