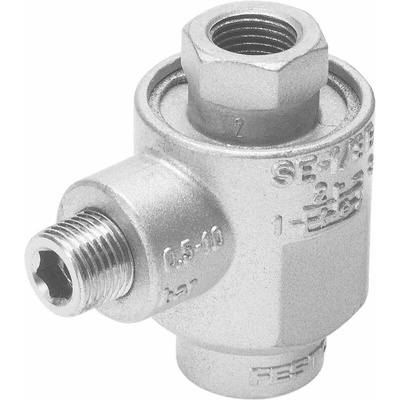

SE-1/4-B, Festo Quick Exhaust Valve, G 1/4 x 10 bar, Threaded, 7mm

Festo Quick Exhaust Valve, G 1/4 - SE Series - SE-1/4-B

If you're looking for a way to improve efficiency in your factory automation systems, opt for this Festo quick exhaust valve. You simply connect the valve directly to the port of the cylinder and it'll help achieve higher piston speeds on the return stroke. The valve also lowers back pressure for greater energy savings. It can be mounted in any position and a screw-in mechanism makes it quick to install, so it's a versatile choice to use when designing efficient modular systems.
NBR (nitrile butadiene rubber) seals protect the valve against contamination from dust and other particles. A sturdy zinc die-cast aluminium housing resists corrosion, ensuring reliability and a long service life. This valve is suitable for use with both single-acting and double-acting cylinders.

• Threaded connection type for simple installation
• Standard nominal flow rate of 1200 L/min suited to high-flow applications
• Wide operating pressure range of 0.5 bar to 10 bar for use in a range of applications
• Broad ambient temperature range of -20°C to +75°C for durability in challenging conditions
