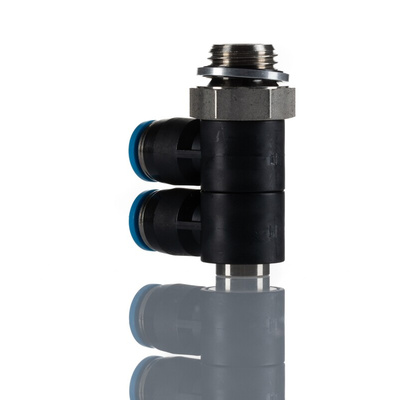

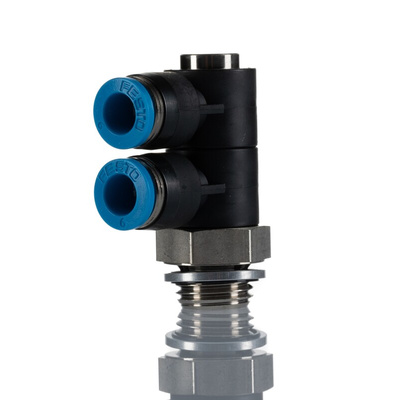

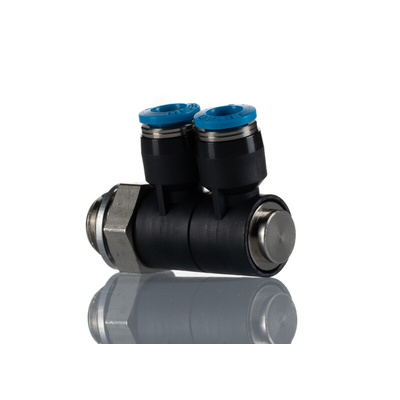

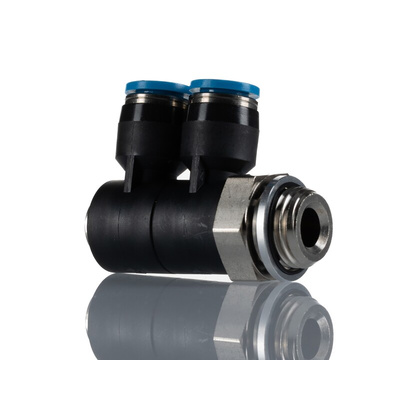

QSLV2-G1/4-6, Festo QSL Series

Festo Pneumatic Distributor, -0.95 to 14 Bar Temperature Dependent Operating Pressure, 2 Outputs - QSLV2-G1/4-6

Keep compressed air in line with this multiple pneumatic distributor from Festo. The manifold directs flow from a single supply to two outputs, so it has you covered if you're using more than one tool. A maximum operating pressure of 14 bar is tough enough to handle heavy-duty applications. With a nominal size of 3.2mm, this unit fits comfortably into confined spaces and you can assemble it in any position to meet the needs of your individual setup. Its tubing seal is made from NBR so you know it's up to the job of keeping oil and water out and can give abrasion the brush off.

Features & Benefits

• Lightweight component of 36g puts minimal strain on pneumatic systems
• Wear-resistant PBT housing holds up under pressure in heavy-duty environments
• Wide operating temperature range between -10°C and +80°C for use in harsh conditions

Applications

• Medical imaging equipment
• Industrial compressors
• Air brakes
• Barostat systems
• Construction applications

How do I release a tube from this pneumatic distributor?

Releasing a tube is a breeze, thanks to the push/pull design.

What type of connection does the inlet port need?

It has a male G1/4 thread, making it compatible with standardised systems.

Datasheet - QSLV2-G1/4-6
