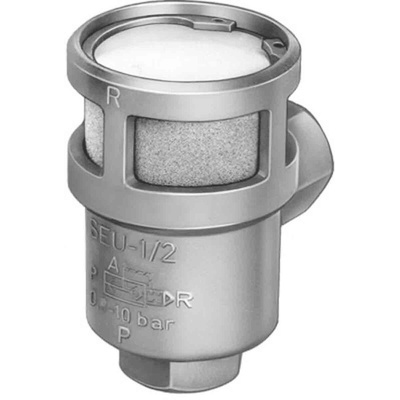

SEU-1/2, Festo Quick Exhaust Valve, G 1/2 x 10 bar, Threaded, 15mm

Festo Pneumatic Quick Exhaust Valve, 0.3 to 10 Bar, G1/2 Port - SEU-1/2

Increase pneumatic cycle speeds with this quick exhaust valve from Festo. It directs air released from a cylinder into the atmosphere, preventing it from flowing back through the directional valve. This conserves energy and lets you use a smaller valve in your pneumatic application. Aluminium die-cast housing makes this component durable and stable, even when it's operating at high pressures. The unit also includes a silencer, which reduces exhaust noise to levels that are safe for operators.

• Wide pressure operating range of 0.3 to 10 bar
• Nitrile rubber seals are able to withstand high pressures
• Broad operating temperature range of -20°C to +75°C for use in harsh conditions
• Can be assembled in any position for improved versatility in pneumatic circuit design

Applications

• Industrial automation
• Robotics
• Printing and textile industries

What factors affect the speed of a cylinder?

The speed of a cylinder is determined by how easily incoming pressure can overcome the resistance of the load. It's also affected by the amount of energy needed to get the air on the opposite end of the piston out. An exhaust port helps to reduce the resistance of outgoing air.
