GHG2610005R0005, Eaton GHG 261 Series Limit Switch, 2NC/1NO, IP66, 3P, Polyamide Housing, 500V ac Max, 10A Max, Концевой выключатель

Eaton CEAG Crouse-Hinds Safety Limit Switches - GHG26 Series

The GHG26 range of limit switches from Eaton Crouse-Hinds is designed to reliably isolate the power supply on electrical installations during maintenance and repair. These safety switches have an integrated locking facility for up to 3 padlocks in the off position to protect against accidental switching. Designed for use in safety circuits, the limit switches are quickly installed, are flexible and safe whilst offering high reliability.

These limit switches are suitable for industrial automation and control applications in hazardous areas such as machine tools, hoists, material handling and conveyor systems.

Features and Benefits

• Versions in impact-resistant polyamide or glass-fibre-reinforced polyester enclosures provide a high degree of protection IP66 for limit switches up 180 A making these switches highly resistant to mechanical impact
• Rotating actuator knob
• Explosion protected limit switches with IEC 62262-1 class 1 & ATEX hazardous area certification
• Optionally supplied with snap-on moulded plastic or brass flanges fittings for easy mounting and installation
• Switch mounting plates are available separately

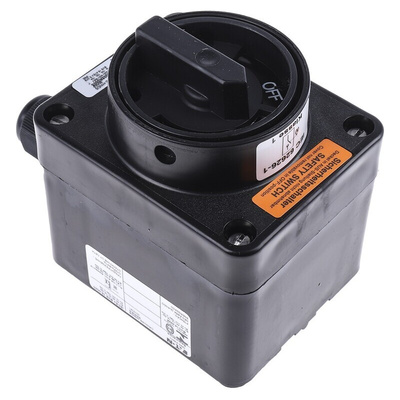

Eaton CEAG NO/2NC, 10 A Explosion Protected Limit Switch - GHG2610005R0005

The CEAG limit switch has 3-pole contacts of 400V voltage rating and 10A current rating. It has 1 auxiliary contacts with 1NO.
Hazardous area:
For specific hazardous area approval category details, please refer to the bullet points for each product. Approval certificates available on request.

Features and Benefits

Heavy-duty impact-resistant polyamide enclosure
AC3 switching capacity
Rotating actuator knob with On - Off positions
Can be locked using padlocks in three positions
2 X M20 cable entries complete with cable glands
3 isolating poles with 1 normally open auxiliary

Certifications

IP66 rated
CE certified

Note

Eaton formerly known as CEAG

PTB 00ATEX1074
