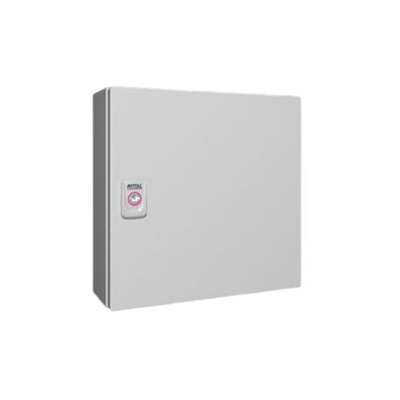

1555000, Rittal KX Series Sheet Steel Wall Box, IP66, 300 mm x 300 mm x 120mm

Rittal Lockable Steel Terminal Box, 300mm Height, 120mm Depth - KX Series - 1555000

Keep your electrical equipment safe with this lockable terminal box from Rittal. It’s made from durable sheet steel for resistance to impact and corrosion, making it a good choice for use in harsh environments. The solid front plate keeps the box's contents concealed from view for added security. This enclosure is fitted with a PU (polyurethane) seal for protection from moisture and contaminants. Its pre-fitted cam lock means it's only accessible using the supplied key, preventing unauthorised access. This box is supplied with a zinc-plated mounting plate that's corrosion-resistant for a long-lasting hold on a wall.

Features & Benefits

• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Compact external dimensions of 300 (height) x 300 (width) x 120mm (depth) for installation in areas where space is limited

Applications

• Mechanical component housing
• Electrical devices
• Wire and cable organisation

How much does the door to this enclosure open?

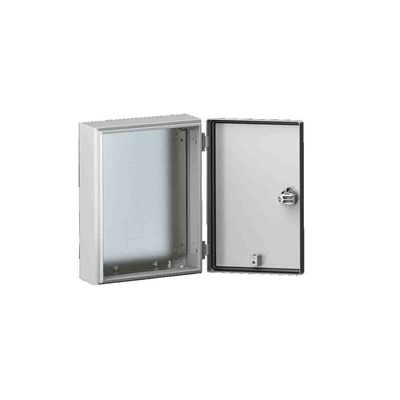

This enclosure's door opens at a wide angle of 180°, giving you ease of access to the contents of your box.

Datasheet - 1555000

Dimension Sheet - 1555000

KX Series Installation guide
