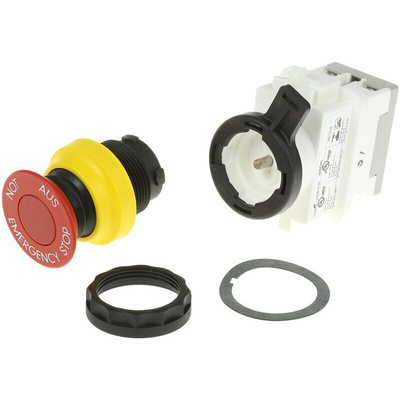

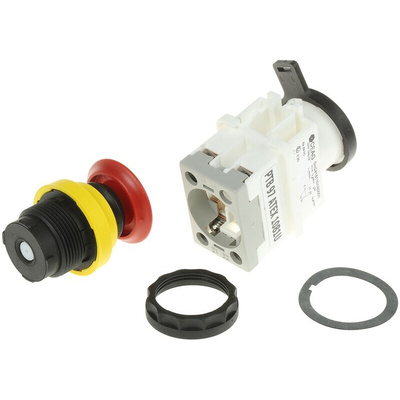

GHG4188155R1200, Eaton GHG4188 Series Pull to Release Emergency Stop Push Button, Panel Mount, SPDT, IP66, Нажимная кнопка

Emergency Stop Pushbutton

Panel mounting for use in Zone 1 hazardous areas. Maximum panel thickness is 5mm and the mounting hole required is 30.5mm diameter.,Front element is fixed to panel using the clamp nut. Body/contact block components fitted from rear utilising the built in quick action bayonet feature. The switches are rated at 500V/16A and the signal lamps have a rated voltage of 24Vdc.Housings are made from EN polyamide and glass reinforced polyester. Operating temperature: -55 to +50°C.

1 x N/O and 1 x N/C contact block included
Red mushroom head
Pull to release action
Dimensions 57 x 38 x 77mm (behind panel); front of panel depth 30mm

Certificate No.

PTB 97 ATEX 1081U

Group and Category

II 2 G EEx d e IIC T6

Eaton CEAG Crouse-Hinds Emergency Stop Pushbutton, 16A, 220V - GHG4188155R1200

This panel-mounted pushbutton switch from CEAG Crouse-Hinds makes a convenient choice as an emergency stop for operations in hazardous zones. It features a red mushroom-style button that's easy to see and press when you need to quickly halt a system. The strong polyamide construction ensures long-lasting performance. The unit is suitable for use where flammable gas, vapours or mist may be present and even in potentially explosive conditions.

• IP66 (ingress protection) rating means it's dust-tight and protected against jets of water
• Maximum AC (alternating current) voltage of 500V and maximum DC (direct current) voltage of 220V accommodates a range of applications
• Wide operating temperature range of -20°C to +40°C for use in either freezing or high-heat environments

If this pushbutton switch is used in freezing conditions, will it be affected by ice or condensation?

No, the unit's sealed against moisture infiltration, so ice or condensation won't damage this switch or affect its performance.

Is this switch illuminated?

No, this switch isn't illuminated, so it's best suited to well-lit environments where its prominent shape and red colour make it easy to identify.

Note

Eaton formerly known as CEAG
Push buttons 202-3881 or 202-3897 can be used with control station 321-161.

Approvals

II 2 G EEx d e IIC T6

PTB 99ATEX1034 (WITH CAP)

PTB 97ATEX1081U 9 (W/O CAP)
