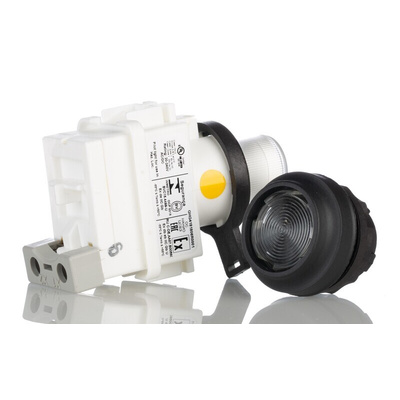

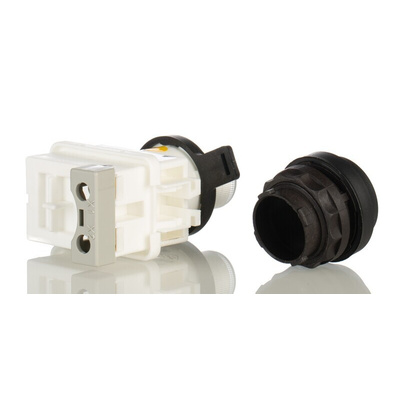

GHG4188170R0051, Eaton, Panel Mount LED Pilot Light, 30mm Cutout, IP66, Round, 250V ac/dc

Eaton CEAG Pilot Light For Use With CHG Series, 90mA Current Rating, LED - GHG4188170R0051

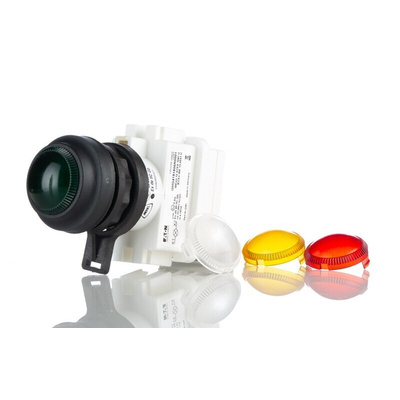

Use this Eaton CEAG pilot light to give clear signals of the status of your equipment. Its interchangeable LED lenses come in red, green, amber and white, giving variety and versatility. The lamp's durable housing is made from corrosion-resistant polyamide and glass-reinforced polyester, making it suitable for use in harsh industrial conditions. As it has a rating of 250V AC/DC, you can safely install it in low-voltage applications. An IP66 rating indicates that this device is dust-tight and withstands high-pressure water jets.

Features & Benefits

• Compact cutout diameter of 30mm for installation on standard panels
• Panel mount and quick-action bayonet fixing ensure quick and easy installation
• Broad operating temperature range from -55°C to +50°C for use in challenging environments
• ATEX hazardous area certified, so safe to use in explosive atmospheres

How much energy does this signal lamp consume?

This signal lamp has a low current rating of 90mA, making it an energy-efficient choice.

How much space will I need for this signal lamp?

With dimensions of 57 (length) x 38 (width) x 77mm (height) and a front panel depth of 17.5mm, this is a compact option.

Note

Eaton formerly known as CEAG

PTB 99ATEX1034 (WITH CAP)

PTB 99ATEX1040U (WITHOUT CAP)
