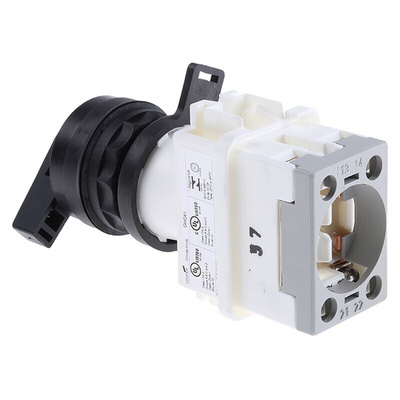

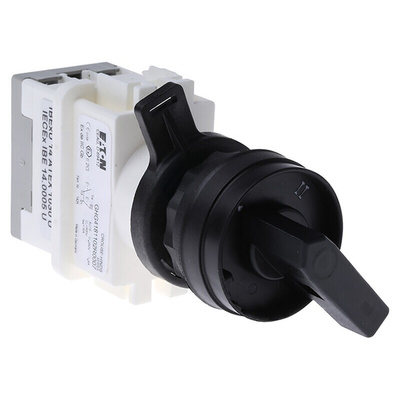

Rotary Control Switch
Panel mounting for use in Zone 1 hazardous areas. Maximum panel thickness is 5mm and the mounting hole required is 30.5mm diameter.,Front element is fixed to panel using the clamp nut. Body/contact block components fitted from rear utilising the built in quick action bayonet feature. The switches are rated at 500V/16A and the signal lamps have a rated voltage of 24Vdc.Housings are made from EN polyamide and glass reinforced polyester. Operating temperature: -55 to +50°C.
Two-position
SPDT contact configuration
Dimensions 57 x 38 x 77mm (behind panel); front of panel depth 24mm
Certificate No.
PTB 97 ATEX 1081U
Group and Category
II 2 G EEx d e IIC T6
Note
Eaton formerly known as CEAG
Approvals
II 2 G EEx d e IIC T6
Техническая спецификация
DatasheetPTB 99ATEX1034 (WITH CAP)PTB 97ATEX1081U 9 (W/O CAP)Machine Guarding and Safety Range OverviewMini-Control Switch Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
