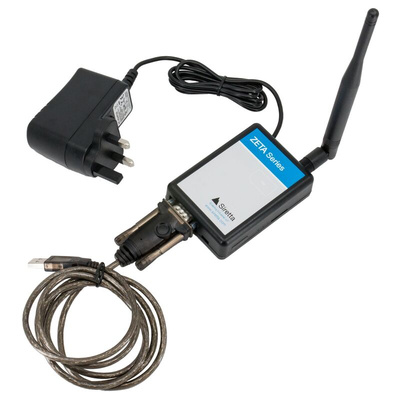

Siretta ZETA-NEP-LTEM (GL) STARTER KIT

The ZETA-NEP-LTEM (GL) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the new global LTE Cat M1 and NB1 networks as they become available also providing backwards compatibility to the existing global 2G / GSM cellular network. The modem operates in a low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NEP-LTEM (GL) allows it to run in a low power state due to its intelligent power saving design whilst monitoring general purpose inputs and driving full specification outputs. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

Features & Benefits

LTE UE Category M1/NB1
13 Bands LTE-M: B1 (2100MHz),B2 (1900MHz), B3 (1800MHz), B4 (AWS 1700MHz), B5 (850MHz), B8 (900MHz), B12 (700MHz), B13 (700MHz), B18 (800MHz), B19 (800MHz), B20 (800MHz), B26 (850MHz), B28 (700MHz)
4 Bands GSM: B2 (1900MHz), B3 (1800MHz), B5 (850MHz),B8 (900MHz)
3GPP release 13 compliant
Half Duplex FDD
3GPP Rel. 12 Power Saving Mode (PSM)
3GPP Rel. 13 Discontinuous Reception (eDRX)
3GPP Rel. 13 Extended coverage
SIM Application Tool Kit 3GPP TS 51.01
Control via AT commands according to 3GPP
TS27.005, 27.007 and customized AT commands
IPv4/IPv6 stack with TCP and UDP protocol
OMA Lightweight M2M (LWM2M)

Physical Interfaces

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x standard mini SIM (2FF push-push)
3 x external LED status indicators (Red, Green, Blue)

The Siretta ZETA-NEP-LTEM (GL) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the new global LTE Cat M and NB IoT networks as they become available, and also provides backwards compatibility to the existing global 2G / GSM cellular network. The modem operates in a low power state thanks to it’s intelligent power saving design, making it ideal for use in industrial IoT applications today, and for long term future developments.

Applications

Access Control Systems
Car Parking Payment
Environmental Monitoring
Vending Machines
Agriculture
Tank Monitoring
Alarm Panels
Industrial Sensors
Automatic Meter Reading
Utilities

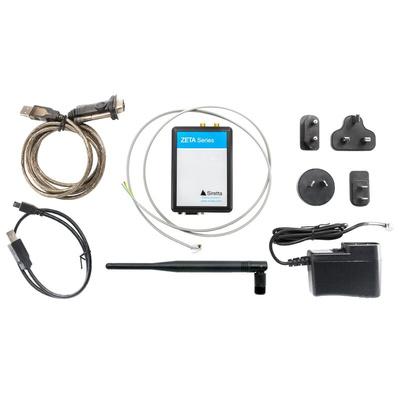

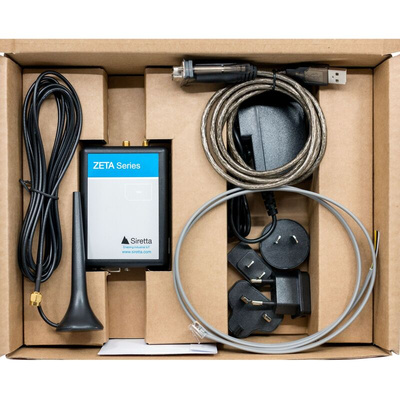

Accessories Included

1 x Cellular Antenna
1 x 1.5M RS232 - USB Cable
1 x 1M USB Mini B Cable
1 x RJ12 Power Pigtail
1 x Pin Reset Tool
1 x Multi Head Power Adaptor

Certifications

CE
FCC
UKCA
RoHS

Datasheet - ZETA-NEP-LTEM (GL) STARTER KIT

ZETA-NxP - Quick Start Guide

ZETA-xxP Series - Hardware Manual
