ZETA-NLP-LTE1 (EU) STARTER KIT, Siretta RS232, RJ12 2G, 3G, 4G Modem Starter Kit, 10Mbit/s

Siretta ZETA-NLP-LTE1 (EU) STARTER KIT

The ZETA-NLP-LTE1 (EU) is a cutting edge, extremely low power industrial modem. It will connect equipment to the European LTE Cat 1 network which is 100% compatible with the existing LTE infrastructure. The modem also provides fallback connectivity to the existing European 3G / UMTS and 2G / GSM cellular networks. The modem is able to operate in an extremely low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NLP-LTE1 (EU) allows it to run in an ultra low power state due to its intelligent power saving design. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.
The powerful C development environment reduces redundancy and lowers system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for an external microcontroller. As a result the ZETA-NLP-LTE1 (EU) lends itself to rapid proof-of-concept developments with minimal investment, providing fast time to market and maximum scalability.

Features & Benefits

6 Bands: 4G / LTE: B1(2100), B3(1800), B7(2600), B8(900), B20(800), B28A(700) MHz
3 Bands: 3G / UMTS:B1(2100), B3(1800), B8(900) MHz
2 Bands: 2G / GSM | GPRS: B3(1800), B8(900)
LTE FDD Category 1
3GPP release 9 compliant
VoLTE Support
SIM Application Tool Kit 3GPP TS 51.014
Control via AT commands according to 3GPP
TS27.005, 27.007 and Telit Custom AT commands
IPv4/IPv6 stack with UDP/TCP/FTP/SMTP protocol

Physical Interfaces

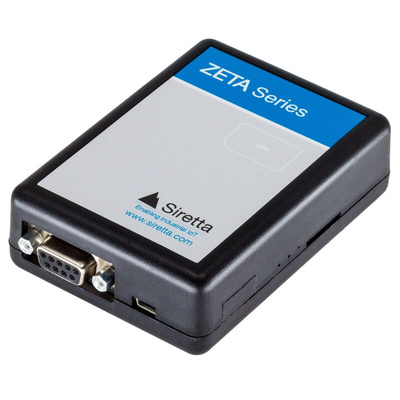

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS

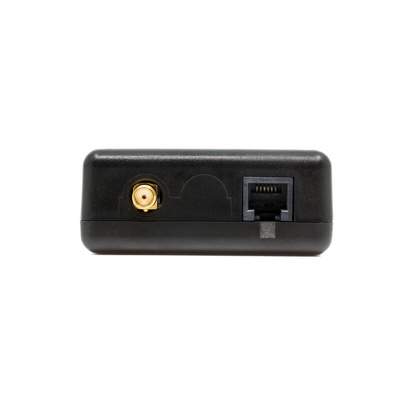

1 x RJ12 power connection (5 - 42V)
Nominal supply 12V
Power on & power off control
1 x SMA female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
3 x external LED status indicators (Red, Green, Blue)

The Siretta ZETA-NLP-LTE1 (EU) is a cutting edge, extremely low power industrial modem. It will connect equipment to the European LTE Cat 1 network which is 100% compatible with the existing LTE infrastructure. The modem also provides fallback connectivity to the existing European 3G / UMTS and 2G / GSM cellular networks. The modem is able to operate in an extremely low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

Applications

Digital Signage
Car Parking Payment
Kiosks
Security Systems
Gaming Machines
Healthcare
Elevator Systems
ATMs
Payment Systems
Energy Utilities
Water Utilities

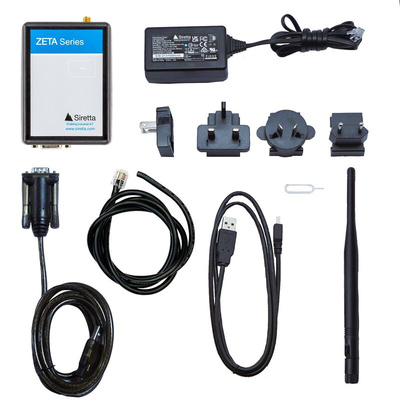

Accessories Included

1 x Cellular Antenna
1 x 1.5M RS232 - USB Cable
1 x 1M USB Mini B Cable
1 x RJ12 Power Pigtail
1 x Pin Reset Tool
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

Datasheet - ZETA-NLP-LTE1 (EU) STARTER KIT

ZETA-NxP - Quick Start Guide

ZETA-xxP Series - Hardware Manual
