ZETA-GEP-LTE4 (EU) STARTER KIT, Siretta RS232, RJ12, GPIO 2G, 3G, 4G Modem Starter Kit, 150Mbit/s

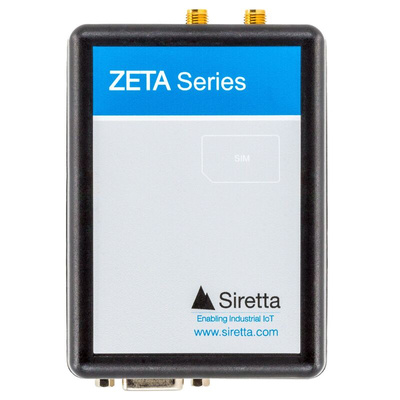

Siretta ZETA-GEP-LTE4 (EU) STARTER KIT

The ZETA-GEP-LTE4 (EU) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the European LTE Cat 4 network
and provide backwards compatibility to the existing European 3G / UMTS and 2G /GSM networks. The modem has a full global GNSS receiver which supports GPS,
Glonass, BeiDou, QZSS and Galileo. It operates in a low power state due to it’s intelligent power saving design, making it ideal for use in industrial IoT applications.
The ZETA-GEP-LTE4 (EU) can monitor general purpose inputs and drive full specification outputs. Other interface options include legacy RS232 for connection to
existing equipment, and a high speed USB interface.

The powerful C development environment reduces redundancy, lowers system component costs, allowing developers to maximise the power of their application
directly on the device, whilst eliminating the need for an external microcontroller. It means the ZETA-GEP-LTE4 (EU) lends itself to rapid proof-of-concept and time
to market, with low risk and maximum scalability, offering intelligence and decision making at the cloud edge.

Features & Benefits

6 Bands: 4G / LTE: B1(2100), B3(1800), B7(2600), B8(900), B20(800), B28A(700) MHz
3 Bands: 3G / UMTS: B1(2100), B3(1800), B8(900) MHz
2 Bands: 2G / GSM | GPRS: B3(1800), B8(900)
LTE FDD Category 4
3GPP release 10 compliant
VoLTE Support
SIM Application Tool Kit 3GPP TS 51.014
Control via AT commands according to 3GPP
TS27.005, 27.007 and Telit Custom AT commands
IPv4/IPv6 stack with UDP/TCP/FTP/SMTP protocol
Supports GPS, Glonass, Beidou, Galileo, QZSS

Physical Interfaces

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS

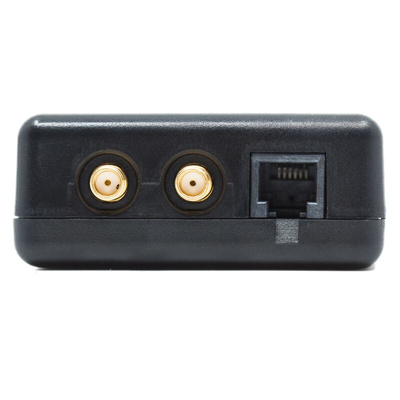

1 x RJ12 power connection (5 - 42V)
Nominal supply 12V
Power on & power off control
1 x SMA female cellular antenna connector
1 x SMA female GPS antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
3 x external LED status indicators (Red, Green, Blue)

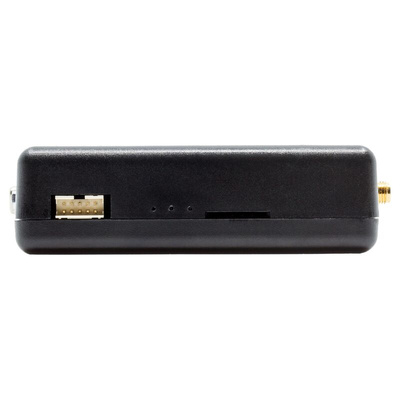

Includes GPIO (10-way connector)
3 x GPI: Inputs (0-42V)
2 x GPO: Outputs (0-42V @1A)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire TTL)
1 x PSU Output @ Vcc

The Siretta ZETA-GEP-LTE4 (EU) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the European LTE Cat 4 network and provide backwards compatibility to the existing European 3G / UMTS and 2G /GSM networks. The modem has a full global GNSS receiver which supports GPS, Glonass, BeiDou, QZSS and Galileo. It operates in a low power state due to it’s intelligent power saving design, making it ideal for use in industrial IoT applications.

Applications

CCTV
Video Surveillance
Car Parking Payment
Kiosks
Smart Cities
Alarm Notification Systems
Environmental Monitoring
Asset Tracking
Telematics
ANPR
Agriculture
Security Systems
Food and Beverage

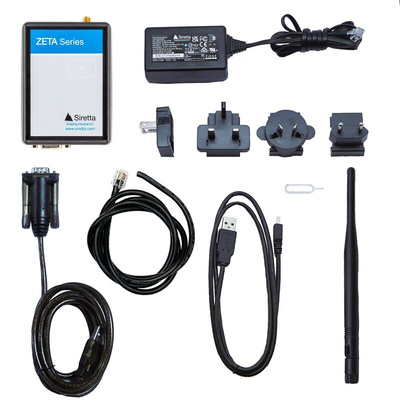

Accessories Included

1 x Cellular Antenna
1 x GPS Antenna
1 x 1.5M RS232 - USB Cable
1 x 1M USB Mini B Cable
1 x RJ12 Power Pigtail
1 x Pin Reset Tool
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

Datasheet - ZETA-GEP-LTE4 (EU) STARTER KIT

ZETA-NxP - Quick Start Guide

ZETA-xxP Series - Hardware Manual
