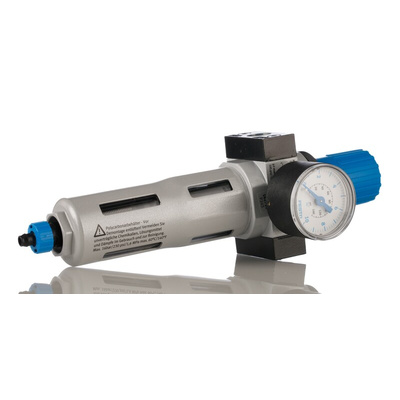

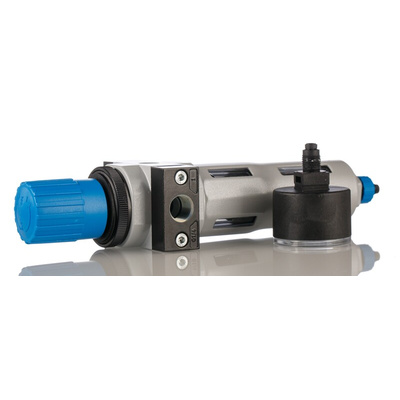

LFR-1/4-D-7-MINI-A, Festo LFR Filter Regulator, 40μm, G 1/4, Automatic

Festo Filter Regulator With Pressure Gauge, 2 to 12 Bar, 1500L/min Flow Rate - LFR-1/4-D-7-MINI-A

Use this filter regulator from Festo to monitor the quality and control the flow of air passing through a pneumatic system. The filter has a filtration grade of 40μm (micrometres) to effectively block small dirt and dust particles, protecting the supply of air against contamination. To improve the efficiency of your system, the regulator maintains precise air pressure levels. This unit comes with a pressure gauge for quick and simple reading of the pressure level.

• Metal bowl guard for effective trapping of contaminants
• Standard nominal flow rate of 1500L/min (litres per minute) for use in applications where a fast flow rate is needed
• Tough die-cast zinc housing material for impact and corrosion resistance

Applications

• Marine industry
• Pharmaceutical industry
• Food production

How is condensation drained from this unit?

This unit uses an automatic condensate drain system, which means the water is let out when it reaches a maximum condensate volume of 22cm³. As it doesn't call for manual operation, it minimises user effort. This makes it a good choice for use in areas that are difficult to access.

Datasheet - LFR-1/4-D-7-MINI-A

Catalogue - Filter Regulators LFR/LFRS, D series

Instruction Sheet - Filter Regulator, Pressure Regulator, Filter
