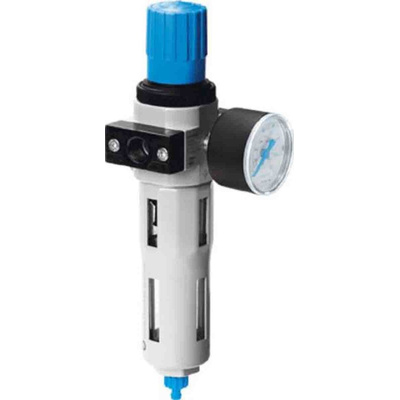

LFR-1/8-D-MINI, Festo LFR Filter Regulator, 40μm, G 1/8

Festo Filter Regulator 40μm G 1/8 - LFR Series - LFR-1/8-D-MINI

This filter regulator from Festo fulfils all the core functions for the preparation of compressed air. It's ideal for standard applications of up to 16 bar where reliability is essential. The unit is lightweight and compact, which saves space in your pneumatic system. Its die-cast zinc housing provides a slim and durable protective casing that's highly resistant to moisture and won't rust easily. The filter regulator is supplied with a pressure gauge and is pre-assembled for quick installation. The necessary mounting accessories are included.

• Bowl material of polycarbonate
• Filtration size of 40 μm
• Manual condensate drain
• Minimum operating pressure of 1 bar
• Can be used with lubricated mediums
• Port connection of G 1/8
• Ambient operating temperature range of -10°C to +60°C

Range Information

• Festo's polymer and metal filter regulator service units from the LFR series can be extended at any time, thanks to their compatibility with all other components in the D series range
• Their high quality and reliability is assured, as the units are pre-assembled and tested before leaving the factory
• This range includes both individual components and combined filter regulator and lubricator units which are supplied ready to install

The Festo series D is a 1/8 port connection filter regulator with metal bowl guard and pressure gauge. It has 40μm degree of filtration with manual condensate drain. It has rotary knob with lock.

MINI(40mm) pneumatic connector
Assembly position - vertical +/- 5°

Datasheet - LFR-1/8-D-MINI

Instruction Sheet

Filter Regulators LFR/LFRS, D Series
