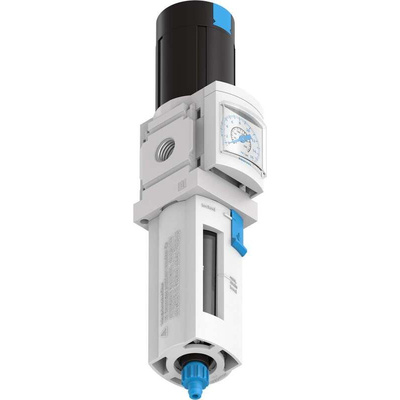

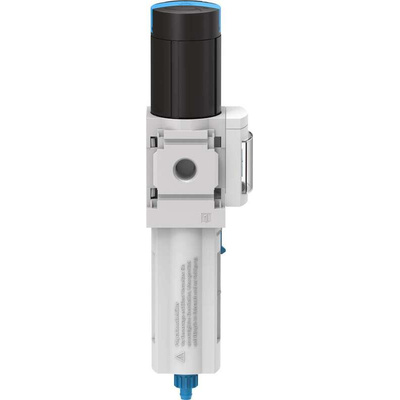

MS4-LFR-1/8-D7-CRM-AS, Festo MS Filter Regulator, 5μm, G 1/8, Manual

Festo Filter Regulator, 850L/min Flow Rate, Lockable - MS4-LFR-1/8-D7-CRM-AS

Want to combine filtration and flow regulation in one convenient device? Turn to this filter regulator from Festo. It gives you close control over airflow at speeds up to 850L/min, so it's a practical option for mid-range pneumatics tasks. Reliable regulation makes it handy for reducing compressed air waste as well as keeping system pressures carefully managed between 0.5 and 12 bar. An integrated filter weeds out contaminants as small as 5μm, meaning you get an optimised supply for consistent performance across your pressurised network.

Features & Benefits

• Locking feature on the rotary knob means there's no need to worry about tampering
• Handles an ambient temperature range between -10°C and +60°C for reliable performance in harsh settings
• Made from hardwearing materials, including die-cast aluminium, PC and POM, for a long life in demanding industrial workplaces
• Also suitable for use with inert gases for application versatility

Applications

• Pharmaceutical production
• Aerospace engineering
• Oil and gas industries

What's the purpose of this product's drain?

This filter-regulator's condensate drain filters out up to 19ml of condensation running through your pneumatic network. This prevents corrosion or moisture contamination that could otherwise affect performance. It's a manual drain, so you simply empty it by hand when it's full.

Datasheet - MS4-LFR-1/8-D7-CRM-AS

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
