LFR-3/8-D-MINI, Festo LFR Filter Regulator, 40μm, G 3/8, Manual

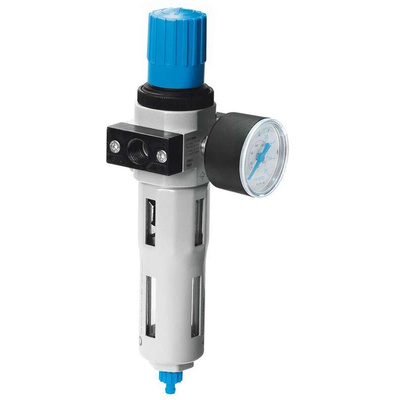

Festo Filter Regulator, 40 μm, G 3/8 - LFR Series - LFR-3/8-D-MINI

Put this Festo filter regulator to the test in demanding pneumatic applications. Its rugged metal design ensures reliable, long-life operation in even the harshest environments. The standard combination unit is conveniently supplied with a pressure gauge and rotary lock, which makes it simple to manually set the pressure. Its filter provides good particle separation while maintaining a high flow rate to ensure your pneumatic system holds pressure.
The unique modular through-bolt joining system of this filter regulator uses only one compression seal between units. This gives you a leak-free assembly and helps prevent mounting misalignment. A strong metal guard protects the inner plastic filter bowl from damage.

• Wide operating pressure range of 1 bar to 16 bar for versatility
• Wide ambient temperature range of -10°C to +60°C allows use in demanding environments
• Filtration size of 40 μm to prevent solid and liquid contaminants from entering air compressors
• Easy and convenient in-line installation without the need to dismantle units
• Durable and corrosion-resistant zinc die-cast housing for a long lifespan in harsh environments
