LFR-1/2-D-MIDI-A, Festo LFR Filter Regulator, 40μm, G 1/2, Automatic

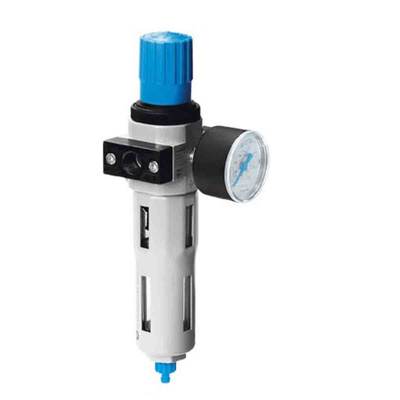

Festo Filter Regulator, 40μm G 1/2 - LFR Series - LFR-1/2-D-MIDI-A

This Festo filter regulator meets all the general needs of compressed air preparation. It's able to operate in pressures of up to 12 bar and is suitable to use with lubricated air. An automatic condensate drain removes water from the filter without the need for manual intervention. The unit is supplied with a pressure gauge and is pre-assembled for quick installation into your compressed air system. Its filter removes water droplets and particles of up to 40 microns from compressed air, making it suitable for use in industrial pneumatic applications.

• Bowl material of polycarbonate
• Automatic drain type
• Metal housing of die-cast zinc
• Minimum operating pressure of 12 bar
• G 1/2 port connection
• Ambient operating temperature range of -5°C to +60°C

Range Information

• The Festo LFR range includes filter regulators and lubricators in three different sizes to suit your space requirements
• They're ideal for applications where less functionality is required while still retaining high levels of quality and reliability
• These units have high-strength housings made from either die-cast metal or polyamide

The Festo series D is a 1/2 port connection filter regulator with metal bowl guard and pressure gauge. It has 40μm degree of filtration with automatic condensate drain. It has rotary knob with lock.

MIDI(55mm) pneumatic connector
Assembly position - vertical +/- 5°

Datasheet - LFR-1/2-D-MIDI-A

Instruction Sheet

Filter Regulators LFR/LFRS, D Series
