LFR-1/4-D-5M-MINI, Festo LFR Filter Regulator, 5μm, G 1/4, Manual

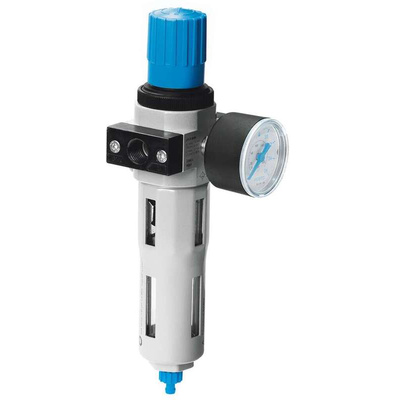

Festo Filter Regulator, 5 μm, G 1/4 - LFR Series - LFR-1/4-D-5M-MINI

This filter regulator from Festo is built for long-lasting operation in any standard compressed air preparation application. It features a rugged metal design able to tolerate harsh industrial environments and operating pressures of up to 16 bar. A filtration size of 5 μm means it can catch fine particles. You can install or remove without disassembling your pneumatic system as it features a space-saving profile with a filter, regulator and pressure gauge in one unit.
Thanks to its low hysteresis, this device offers quick response times to changes in pneumatic pressure, which improves its overall efficiency. Combine this filter regulator with components from Festo's D series to build your modular air-preparation systems.

• Broad operating pressure range of 1 bar to 16 bar for versatility
• Able to operate in ambient temperatures ranging from -10°C to +60°C
• Strong zinc die-cast housing with excellent corrosion resistance for use in challenging industrial conditions
• Two pressure gauge connections that offer you greater flexibility during installation
• Lockable and easy-to-use rotary knob for more precise control of air pressure

Datasheet - LFR-1/4-D-5M-MINI

Filter Regulators LFR/LFRS, D Series

Instruction Sheet
