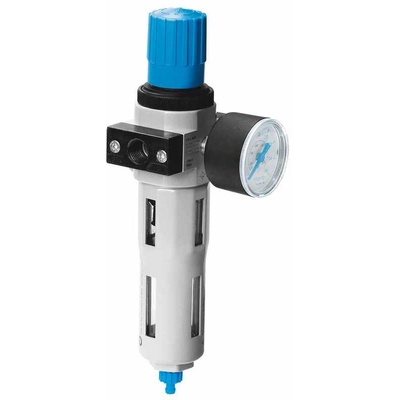

LFR-1/4-D-7-MINI, Festo LFR Filter Regulator, ISO8573-1:2010μm, G 1/4, Manual

Festo Filter Regulator, G 1/4, 16 Bar - LFR Series - LFR-1/4-D-7-MINI

Save space in your pneumatic systems with this filter regulator from Festo. It's designed to make sure the input valves and equipment in your factory automation systems always receive ambient air. Good regulation characteristics with minimal hysteresis ensures this device is optimised for higher productivity. The unit comes with a pressure gauge, so it's easy to maintain and monitor. Plus, a manually-operated condensate drain allows for the efficient ejection of waste from the system. Its zinc die-cast design means you can be confident of long-lasting use.

• Two pressure-gauge mounting options for flexible installation
• Broad operating temperature range of -10°C to +60°C makes this suitable for use in demanding industrial settings
• Settings are secured by locking the rotary knob
• Filters particles of size right down to 40μm (micrometres)
• Wide pressure regulation range of 0.5 to 7 bar for sensitive systems

Application Information

• Factory automation systems
• Medical and dental equipment
• Aerosol lubrication systems

Is this unit corrosion-resistant?

This unit offers satisfactory protection for medium corrosion-stress environments. As it's built for indoor factory use, it can withstand direct contact with common industrial media such as coolants or lubricating agents.

Datasheet - LFR-1/4-D-7-MINI

Catalogue - Air Preparation Units

Catalogue - LFR-1/4-D-7-MINI
