QSQ-8-6, Festo QSQ Series Double Y Tube-to-Tube Adaptor Push In 8 mm, Push In 6 mm to Push In 6 mm, 153210

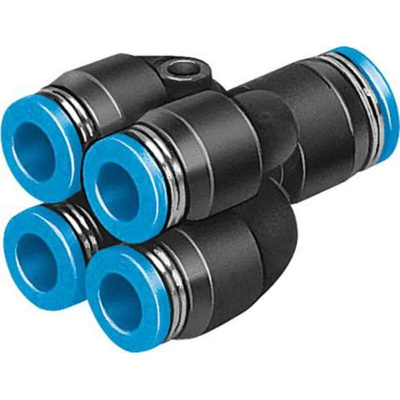

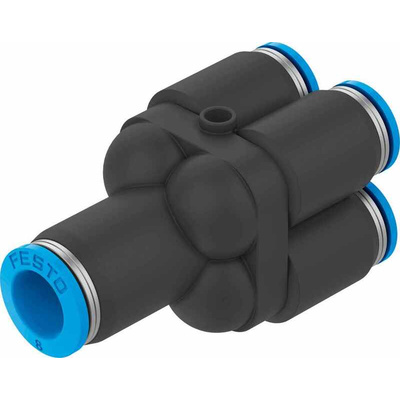

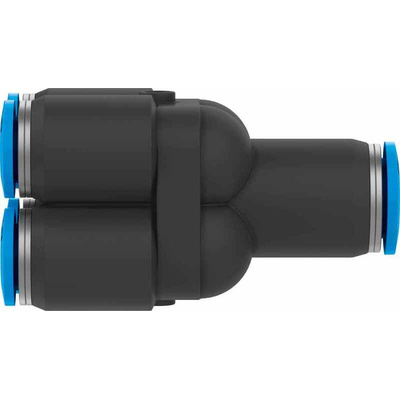

Festo Double Y Tube-to-tube Adaptor Push-in 8 mm to Push-in 6 mm x 4 - QSQ Series - QSQ-8-6

Need to connect a single input to four outputs in a pneumatic system? This double-Y tube-to-tube adaptor from Festo will do the job reliably. It's built from chemical-resistant PBT (polybutylene terephthalate) and can operate at temperatures from -10˚C up to +80˚C, making it suitable for use in a variety of common industrial processes.
The connectors are all push-in types, which enables you to build your systems with ease and to quickly make adjustments to the configuration when needed. The single input takes a tube of 8 mm external diameter, while the four outputs take a 6 mm-diameter tube. Nitrile rubber (NBR) seals make the connections secure and long-lasting. This device is suitable for use with both water and compressed air for maximum versatility.

• Tube-retaining claw made from corrosion-resistant high-alloy steel
• Operating pressure range of -0.95 bar to +6 bar (+14 bar at certain temperatures)
• Light 25 g weight minimises gravitational stress on systems
• Versatile build offers maximum flexibility in standard applications
