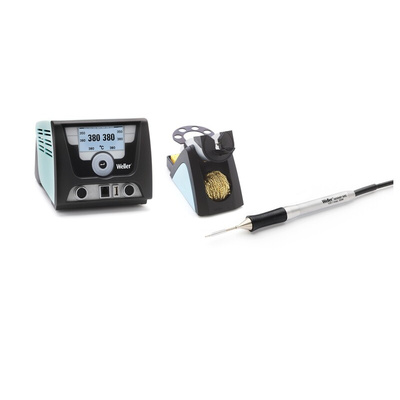

T0053422670, Weller WX 2010 Digital Soldering Station bundle 55W, 230V 350°C

Weller WX stations make the manual soldering process safer, a crucial factor in the automotive, aerospace and medical technology industries. This station set is especially designed to meet the MIL-SPEC / IPC standards to save sensitive components from electrical overstress by using Weller’s RT MS soldering tips. Weller offers a wide range of RT MS tips to solder components with the size from M to L.

A safe soldering process is guaranteed by many features of the Weller WX station like temperature and tool locking, and tool-specific temperature settings. Integrated USB ports provide the WX bench top control units with a connection to and control over soldering fume extractors, pre-heat plates and programmable logic controllers (PLC). Firmware updates and registration are quick and easy by using USB sticks. Parameters such as standby temperatures and automatic switch-off time can easily be stored in the soldering iron. Parameters only need to be stored once
the MS soldering iron can then use them with any WX station.

Always use MS tips with MS irons.

For high precision micro soldering applications: 0402 to 01005
Component size M to L
Station works as a benchtop controller to control tips, tools, fume extraction and peripheric tools
2 channels for simultaneous work of 2 tools with intelligent tool detection
Extremely fast heat-up time: 3 sec.
Triple awarded active tip technology are fully compliant with MIL-SPEC / IPC Standard
Intelligent iron with motion sensor and integrated data storage
Toolless tip change
Traceability ready
Solder wire SAC M1 for best flow behaviour and homogeneous flux distribution
2-in-1 safety rest for wet and dry tip cleaning
Erem 5SA precision tweezers, suitable for very fine wires
Swiss Made

Features:
2 Channel Soldering Power Unit
Automated Tool Detection
USB Ports
Temperature stability
Intuitive Operation, multilingual
Robot Output
Traceability ready
Integrated Parameter storage in Soldering Iron
Active Tip Technology
Grip and Tip in one unit

Scope of Supply:

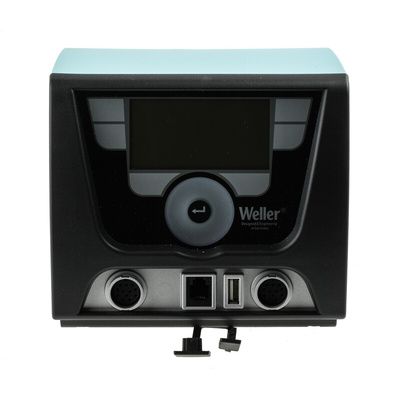

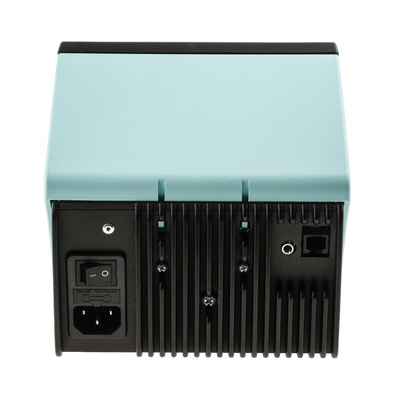

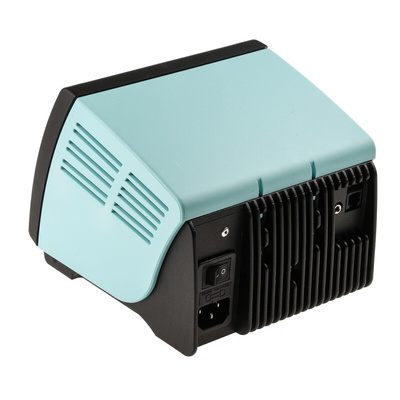

2 Channel Soldering Power Unit WX 2, 200W (255W)

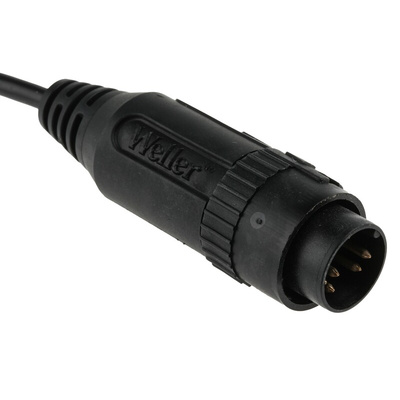

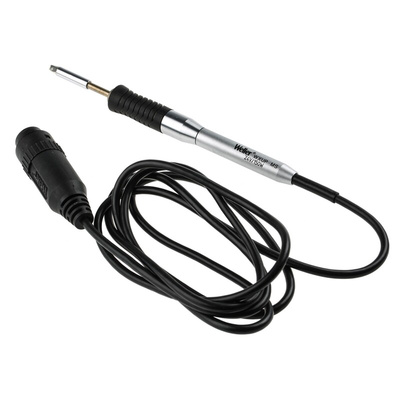

Intelligent Micro Soldering Iron WXMP MS 12V, max. 55W

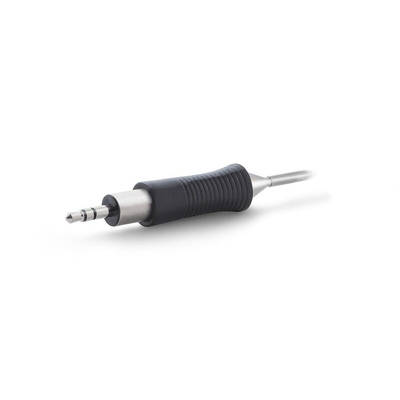

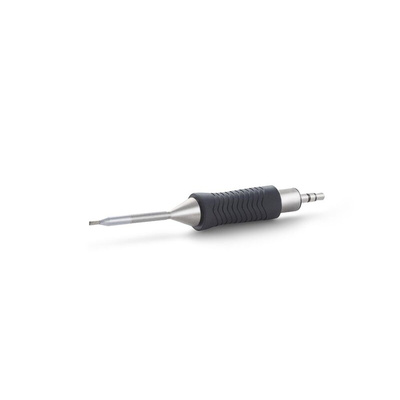

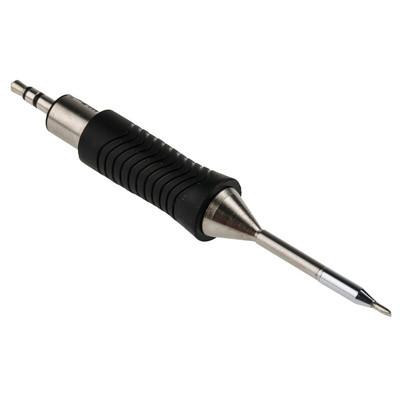

Micro Soldering Tip RTM013MS

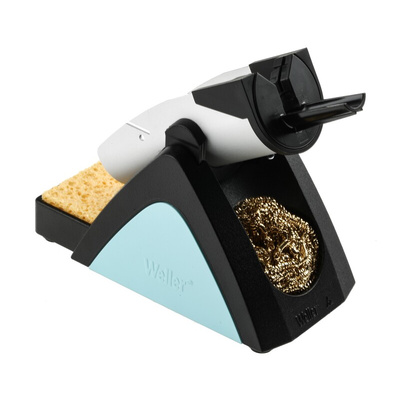

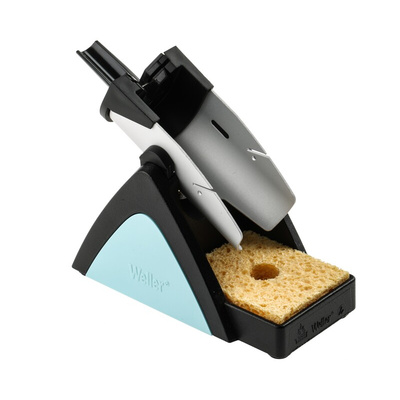

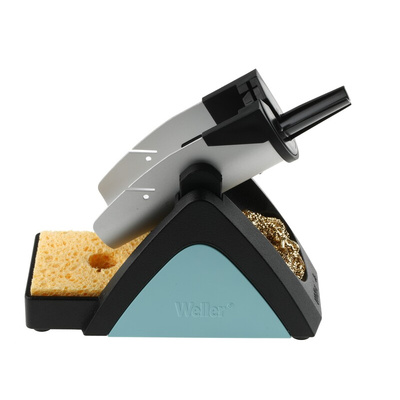

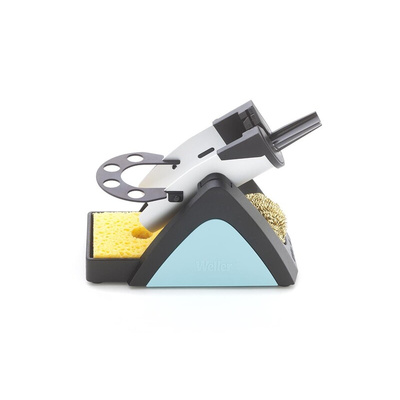

Safety Rest WSR 200

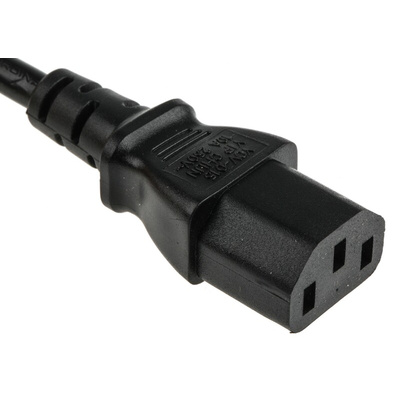

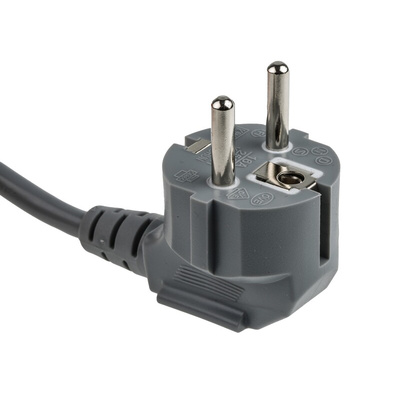

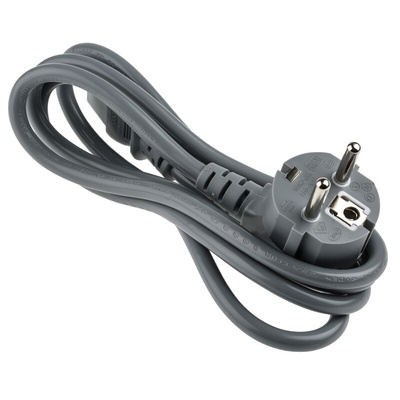

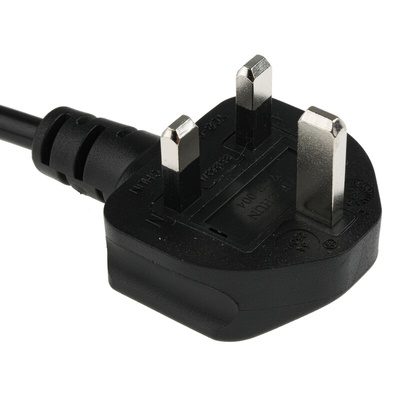

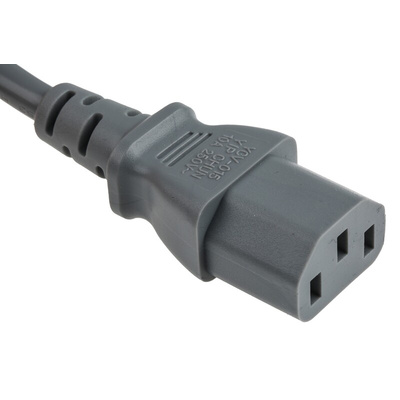

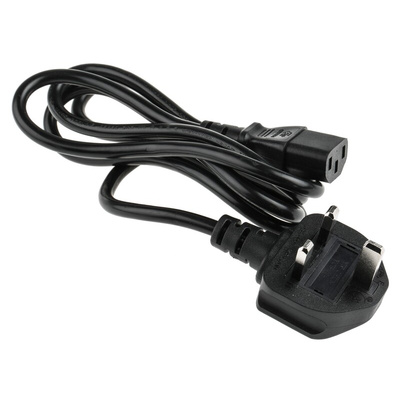

Power Cord F&G
Operating instructions
