PF0033/15/63, Bulgin C14 Snap-In IEC Connector Male, 10A, 250 V ac, Fuse Size 5 x 20mm, Разъем

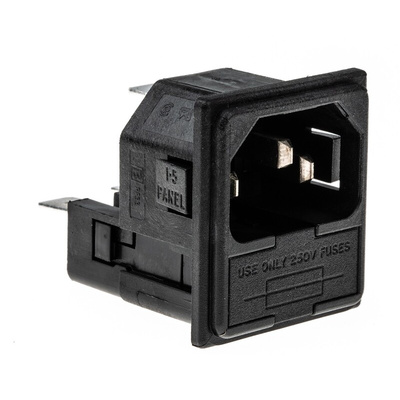

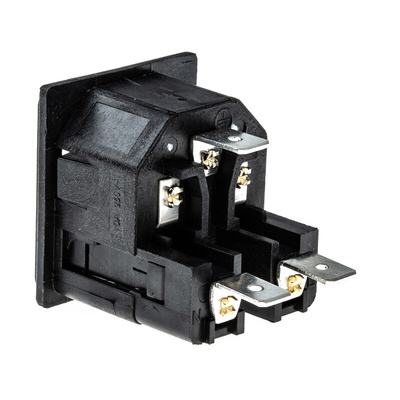

Bulgin IEC Fused Plug

The Bulgin IEC double fused male plug has a straight C14 connector and a vertical snap-in panel mount device. It has a supply voltage rating of 250VAC and current rating of 10A. This connector has three contacts which are made from brass and plated with nickel.

Note:
These fused plugs accept 5mm x 20mm fuses.

Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Panel thickness is 1.5mm
Solder terminals
Twin fused of 5mm x 20mm
Fused Inlet with 6.3mm (0.25in) blade receptacles
Contact resistance is less than 10mΩ
Insulation resistance is greater than 10⁴MΩ
Operating temperature ranges between -20°C and 70°C

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
VDE
IMQ

Approvals

UL recognised component, CSA certified, IMQ, SEMKO, VDE

CSA LR43989-24

Datasheet

IEC Connectors Product Datasheet
