PX0575/10/63, Bulgin C14 Snap-In IEC Connector Male, 10A, 250 V, Разъем

Bulgin Fused Plug

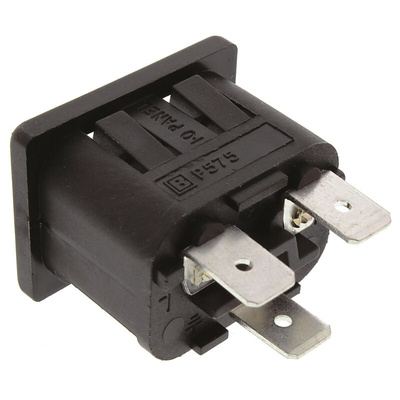

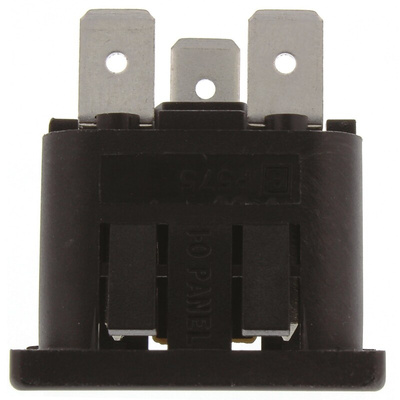

The Bulgin fused plug is a snap-fit to a panel, straight, IEC 320 C14 male inlet connector. It has a supply voltage rating of 250VAC and a current rating of 10A. This M connector has 3 contacts which are made from brass and plated with tin.

Note:
These fused plugs accept 5mm x 20mm fuses.

Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Panel thickness is 1mm
Solder terminals
Fused inlet with 6.3mm (0.25in) blade receptacles
Contact resistance is <10mΩ
Insulation resistance is >10⁴MΩ
Operating temperature ranges between -40°C and 70°C

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
VDE
IMQ
BSI

Approvals

UL recognised component, CSA certified, VDE, IMQ, BSI
