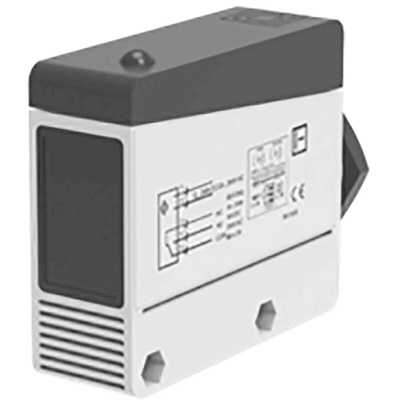

RS PRO Diffuse Reflection Photoelectric Sensor, Block Sensor, 0.8 m Detection Range

RS PRO Photoelectric Sensor, Diffused Detection 800mm Adjustable Sensing Distance

Introducing photoelectric sensors with adjustable diffused detection from RS PRO, a selection of robust and high quality sensors ideal for use in a wide range of industrial applications. These high performance sensors features an all in one design with emitter and receiver built into a durable housing, making them highly cost effective and easy to install. The sensors use adjustable diffused detection with infrared light for attenuation-free detection of surfaces and objects regardless of colour or texture, ensuring high accuracy and performance. The RS PRO photoelectric sensors with diffused detection also feature excellent anti-interference performance, providing reliable results in a wide range of environments. For enhanced protection the sensors also offer an IP67 protection rating, ensuring it remains protected against dust and moisture.

Features and Benefits

• Diffused detection sensor for enhanced reliability and precision


• 800mm adjustable sensing distance providing flexibility


• Relay output


• Reliably detect multiple colours and objects with accuracy


• Infrared LED (880nm) light source


• Terminal connections


• High detection accuracy


• All in one design with emitter and receiver built into single housing for easy installation


• IP67 protection offering protection against dust and moisture build up


• Robust design ideal for use in a wide range of environments


• Anti-interference offering excellent performance

Applications

Photoelectric sensors are devices used in a wide range of industrial applications that use automated technology to detect and measure the distance of various objects and surfaces to perform a task. Diffused photoelectric sensors feature either infrared (IR) or visible red lights and are perfect for applications that require precision and repeatability, whilst providing flexibility. Diffuse sensors use a light source that reflects off an object, using it as a reflector. Photoelectric sensors are featured in a wide range of industrial and automated devices including:

• Garage doors


• Smoke detectors


• Hand dryers


• Manufacturing machinery

Standards

IP67, CE

FAQs

Is the sensor distance adjustable?

Yes, RS PRO diffused suppression sensors feature adjustable sensing from 0 → 800 mm.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
