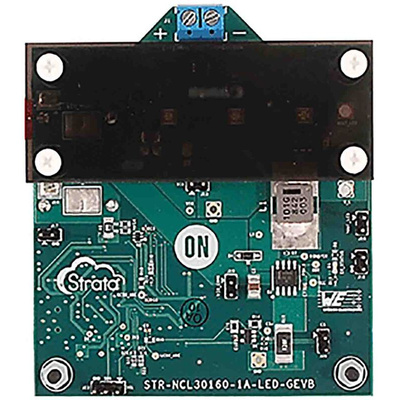

STR-NCL30160-1A-LED-GEVB, onsemi Strata Enabled NCL30160 1A LED Driver for NCL30160 for Strata to Control the NCL30160 and Monitor Telemetry

The ON Semiconductor STR-NCL30160-1A-LED-GEVB provides an evaluation board for the NCL30160 1A LED driver using Strata Developer Studio. The NCL30160 is an NFET hysteretic step-down, constant-current driver for high power LEDs that offers fast load transient response, PWM LED dimming, resistor-programmable LED current, shorted LED protection, under-voltage lockout and thermal shutdown in an SOIC-8 package. This evaluation board is used with Strata to control the NCL30160 and monitor telemetry such as input voltage/current, LED voltage/current, and temperature.

Integrated 1A/50mO MOSFET
VIN Range 6.3V to 40V
Shorted LED Shutdown Protection
Up to 1.4 MHz Switching Frequency
No Control Loop Compensation Required
Adjustable LED Current
Single Pin Brightness and Enable/Disable Control Using PWM
Supports All-Ceramic Output Capacitors and Capacitor-less Output
Thermal Shutdown Protection
Capable of 100% Duty Cycle Operation
Pb-Free Device

Datasheet - STR-NCL30160-1A-LED-GEVB
