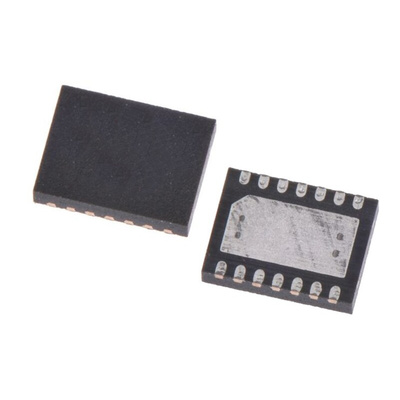

ON Semiconductor NCV7422MW0R2G

The ON Semiconductor NCV7422 is a two channel physical layer device using the Local Interconnect Network (LIN) protocol. It allows interfacing of two independent LIN physical buses and the LIN protocol controllers. The device is compliant to ISO 17987-4 (LIN 2.x Protocol Specification package) and the SAE J2602 standard. The NCV7422 LIN device is a member of the in-vehicle networking (IVN) transceiver family. The LIN bus is designed to communicate low-rate data from control devices such as door locks, mirrors, car seats, and sunroofs at the lowest possible cost. The bus is designed to eliminate as much wiring as possible and is implemented using a single wire in each node. Each node has a slave MCU-state machine that recognizes and translates the instructions specific to that function. The main attraction of the LIN bus is that all the functions are not time critical and usually relate to passenger comfort.

Compliant to ISO 17987-4 (Backwards Compatible to LIN Specification rev. 2.x, 1.3) and SAE J2602
Bus Voltage 42 V
Transmission Rate 1 kbps to 20 kbps
TxD Timeout Function
Integrated Slope Control
Thermal Shutdown
Under voltage Protection
Bus Pins Protected Against Transients in an Automotive Environment
Normal Mode: LIN Transceiver Enabled, Communication via the Bus is Possible
Sleep Mode: LIN Transceiver Disabled, the Consumption from VBB is Minimized
Standby Mode: Transition Mode Reached after Wake-up Event on the LIN Bus
Pin-Compatible Subset with NCV7321 and K-line Compatible
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Require- ments
AEC-Q100 Qualified and PPAP Capable
These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
