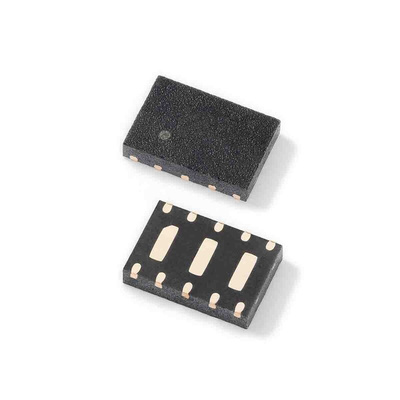

Littelfuse SP2525NUTG, Quad-Element Uni-Directional TVS Diode Array, 10-Pin μDFN

The SP2525NUTG is a low-capacitance, TVS Diode Array designed to provide protection against ESD (electrostatic discharge), CDE (cable discharge events), EFT (electrical fast transients), and lightning induced surges for high-speed, differential data lines. It’s packaged in a μDFN package (3.0 x 2.0mm) and each device can protect up 4 channels up to 30A (IEC 61000-4- 5 2nd edition,) and up to ±30kV ESD (IEC 61000-4-2). The SP2525NUTG with its low capacitance and low clamping voltage makes it ideal for high-speed data interfaces such as 1GbE applications found in notebooks, switches, etc.

ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
EFT, IEC 61000-4-4, 40A (5/50ns)
Lightning, IEC 61000-4-5 2nd edition, 30A (tP=8/20μs)
Low capacitance of 1.7pF@0V (TYP)
Low leakage current of 1nA (TYP) at 2.5V
Low operating and clamping voltage
μDFN-10 package is optimized for high-speed data line routing
Provides protection for two differential data pairs (4 channels) up to 30A
Halogen free, Lead free and RoHS compliant
Moisture Sensitivity Level (MSL -1)
