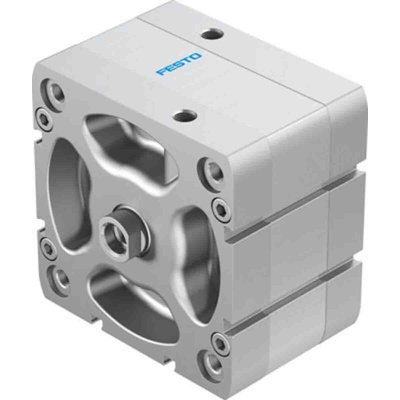

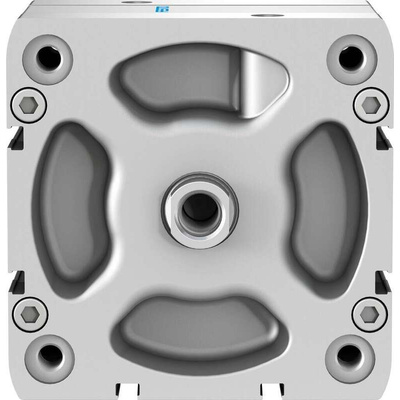

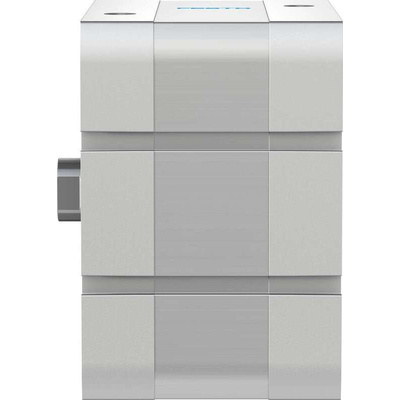

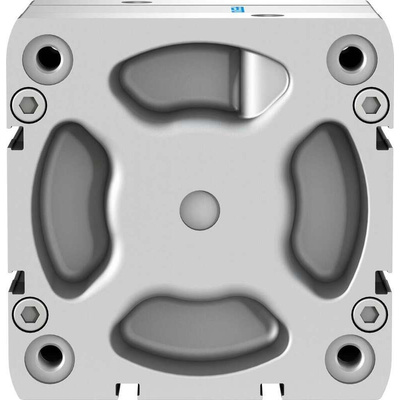

ADN-100-10-I-P-A, Festo Pneumatic Compact Cylinder - 536384, 100mm Bore, 10mm Stroke, ADN Series, Double Acting

Festo Pneumatic Compact Cylinder, Wrought Aluminium Alloy Material, G1/8 Pneumatic Connection - ADN-100-10-I-P-A

Ensure a smooth ride for your moving machine components thanks to this pneumatic compact cylinder from Festo. Compressed air is the driving force for this double-acting piece as its two openings let air pass through to move the internal piston rod. Flexible cushioning rings at both ends take the hits from the rod and keep it from wearing out. To really close the deal, this gear comes with robust TPE-U seals that help ensure a gas-tight connection to keep the air from leaking.

Features & Benefits

• Can be assembled in any position for flexibility
• Wrought aluminium alloy cylinder barrel resists high impacts and corrosion
• Wide operating temperature range between -20°C and +80°C to stand up to challenging operations

Applications

• Food production and packaging
• Conveyor systems
• Automotive engineering

Can I lubricate this pneumatic cylinder?

Yes, you can lubricate this pneumatic compact cylinder to help smoothen its movement and reduce friction. It's important to note that you must then lubricate it for every subsequent operation.

What's the operating pressure of this pneumatic compact cylinder?

Thanks to an operating pressure range between 0.6 and 10 bar, you can use this cylinder in your low-pressure applications.

Datasheet - ADN-100-10-I-P-A
