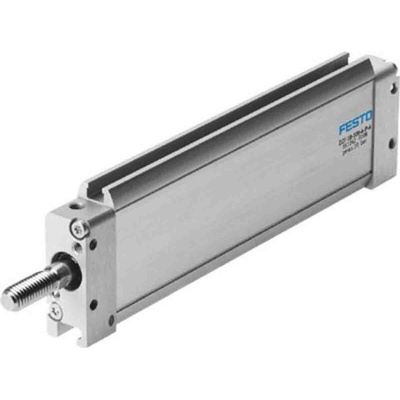

DZF-18-10-A-P-A, Festo Pneumatic Compact Cylinder - 161237, 18mm Bore, 10mm Stroke, DZF Series, Double Acting

Festo Pneumatic Compact Cylinder, 18 mm Bore, Double Acting - DZF Series - DZF-18-10-A-P-A

Use this flat pneumatic cylinder from Festo in automated position-sensing applications such as packaging machines. Its compact size makes it suitable for positioning smaller components. The unit provides a double-acting linear motion and uses hydraulic power to extend and retract. This allows for full control of movement in both directions. Its elastic cushioning rings help prevent mechanical shock and protect components from damage. As this unit is non-rotating, it keeps a load or equipment in the required position.

• Double bore action cylinder
• Bore diameter of 18 mm
• Piston diameter of 18 mm
• Stroke of 10 mm
• Maximum angular deflection of piston rod of +1.2°
• Operating pressure range of 1 bar to 10 bar
• Maximum torque for protection against rotation of 0.2 Nm
• Can be assembled in any position
• Pneumatic connection of M5
• Smooth anodised aluminium housing
• High-alloy steel piston rod
• Operating temperature range of -20°C to +80°C

Range Information

• Festo DZF-series cylinders are double-acting to allow for position-sensing control in both directions
• These units are available with a piston rod at one end, a through piston rod or a through-hollow piston rod

The Festo DFZ series piston shape double-acting flat cylinder has a non-rotating, male thread with elastic cushioning rings in end positions for position sensing. A piston rod has 12 mm diameter 10 mm with maximum +/-1.2 deg angular deflection.

Various mounting options
Piston diameter - 10 mm
Cushioning - P
Assembly position - any

Datasheet - DZF-18-10-A-P-A

Catalogue - DZF-18-10-A-P-A
