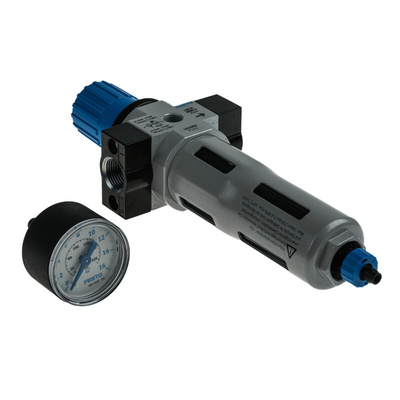

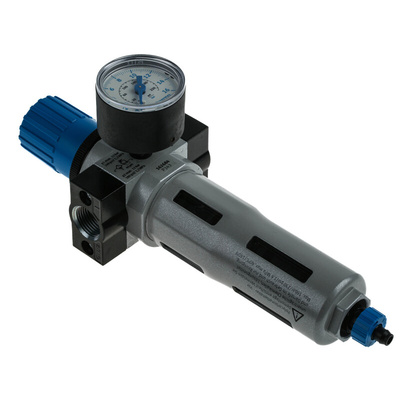

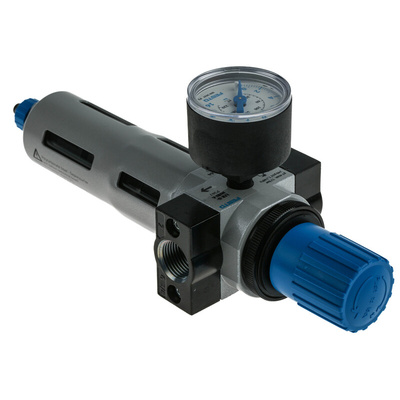

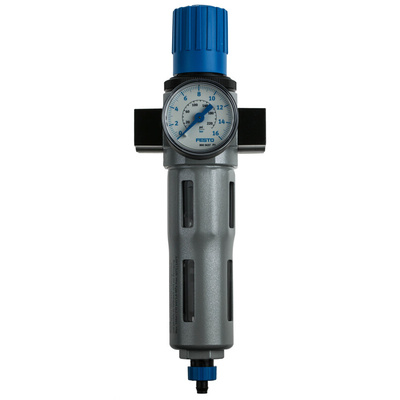

LFR-3/8-D-MINI-A, Festo D Filter Regulator, 40μm, G 3/8, Automatic

Festo Mini Filter Regulator, 0.5 to 12 Bar, 1600L/min Flow Rate - LFR-3/8-D-MINI-A

This filter regulator from Festo helps maintain precise pressure levels in your pneumatic system. You can also rely on it to keep contaminants out and maintain optimal performance. Thanks to a broad pressure regulation range of 0.5 to 12 bar, you can use it in both low-pressure and high-pressure applications, making it a versatile choice. A fully automatic condensate drain ensures that water produced during the filtration process is released at the pre-set level. As this eliminates the need for manual draining, this filter regulator is a good choice for use in areas that are difficult to access.

• Wide operating temperature range of +5°C to +60°C for use in industrial conditions
• Standard nominal flow rate of 1600L/min (litres per minute) for use in demanding applications
• Die-cast zinc housing is resistant to impact and corrosion for added durability
• Filtration grade of 40μm to effectively trap tiny dust particles

Applications

• Food and beverage production
• Medical equipment
• Water treatment facilities

How do I monitor the pressure level of this filter regulator?

This unit comes with a pressure gauge that displays the pressure readings in real time for ease of monitoring.

Datasheet - LFR-3,8-D-MINI-A

Catalogue - Filter regulators LFR/LFRS, D series
