VPPM-8TA-L-1-F-0L6H-S1C1, Festo Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 572408

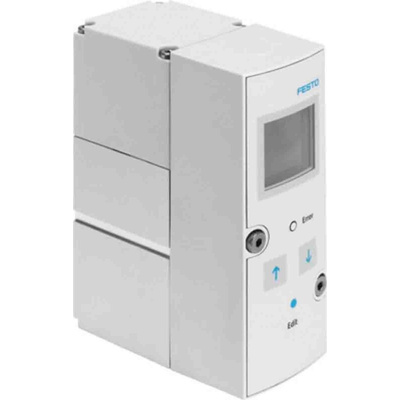

Festo Pneumatic Regulator, Electric Actuation, 1050L/min Flow Rate - VPPM-8TA-L-1-F-0L6H-S1C1

Precisely adjust the air pressure in your system using this pneumatic regulator from Festo. It's electrically operated and has integrated control circuits and sensors. This means you can accurately control and adjust pressures between 0.06 and 6 bar to suit the force and flow needs of your connected devices. On the front of the unit, there's an LCD display along with up and down buttons that make it simple to use. The regulator comes with polarity protection on the connections to help prevent electrical damage. A safety position function maintains the air pressure even if the power supply is interrupted.

Features & Benefits

• Modular design with manifold block mounting to provide installation flexibility
• Anodised aluminium alloy housing for corrosion resistance and durability
• Backlit display for easy reading in low light conditions

Applications

• Medical equipment
• Industrial automation
• Dispensing machines
• Food processing

What's the flow rate of this pneumatic regulator?

This pneumatic regulator has a typical flow rate of 1050L/min.

Can I use this pneumatic regulator in harsh conditions?

Yes. This pneumatic regulator has an IP65 rating, so it's dust-tight and resistant to jets of water from any direction. This means it's well-built for harsh industrial conditions.

Datasheet - VPPM-8TA-L-1-F-0L6H-S1C1

Catalogue - Proportional-Pressure Regulators

Instruction Sheet - VPPM-8TA-L-1-F-0L6H-S1C1
