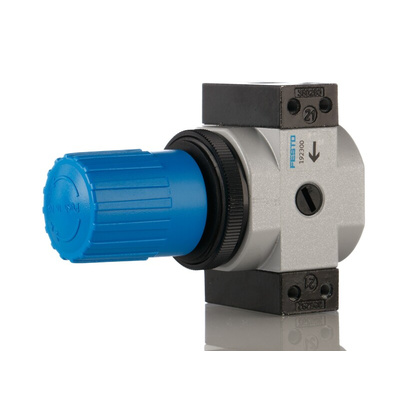

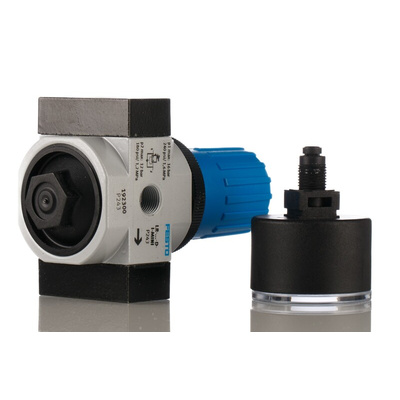

LR-1/4-D-I-MINI, Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 192300

Festo Pressure Regulator, G1/4 Connection, 0.5 to 12 Bar - LR-1/4-D-I-MINI

Ensure your pneumatic system delivers accurate output air pressures with this pressure regulator from Festo. It has a G1/4 pneumatic port connecting thread and an integrated return flow function to efficiently adjust and control airflow volumes within your system. The directly-controlled diaphragm regulator responds to variations in pressures to control air and fluid flows according to a pneumatic system's set point. Zinc die-casting material makes this component hardy and long-lasting as it resists damage caused by corrosion and abrasion.

• Operating pressure range of 0.5 to 12 for use in heavy-duty applications
• Nitrile rubber (NBR) seals resist chemicals, abrasions and compression to form a secure and reliable sealing solution
• Wide operating temperature range of -10°C to +60°C for use in harsh conditions

Applications

• Industrial gas installations
• Pharmaceutical equipment
• Automotive industry
• Aerospace applications

What should I consider when selecting a pressure-reducing valve?

You should take into account the inlet and outlet pressures of the systems, connection port sizes, flow rates and operating temperatures, as well as size and weight requirements.

What is regulator sensitivity?

Regulator sensitivity relates to how much the downstream pressure needs to change before the regulator decreases or increases the flow.
