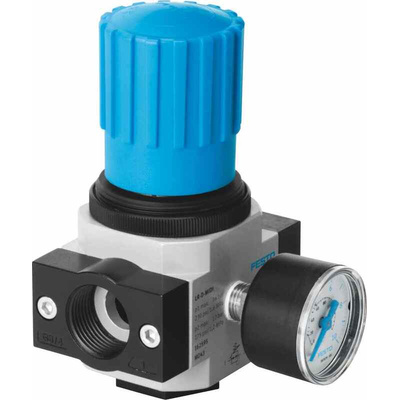

LR-3/8-D-MINI, Festo G 3/8 Pneumatic Regulator - 0.5bar to 12bar, 3/8 in, 16bar max. input, 162580

Festo Pneumatic Regulator, G 3/8, 1700L/Min Typical Flow Rate - LR-3/8-D-MINI

Choose this mini pneumatic regulator from Festo's D series when you need to control the flow of compressed air in your pneumatic system. This is a diaphragm regulator that consists of a diaphragm assembly controlling a spring-actuated valve. The flow of air against the diaphragm compresses the spring, which closes the valve. You can easily set the pressure to the required level using the lockable rotary knob. This device is fitted with a standard G 3/8 port connection for versatility.

• Operating temperature range of -10°C to +60°C, making it suitable for a wide range of industrial environments
• Nitrile rubber seals protect against leakage
• Die-cast zinc housing and connection plate offer strength and a long service life.

Applications

• Pneumatic systems
• Industrial machine automation
• Manufacturing plants

How do I install this mini pressure regulator?

This regulator can be mounted in a front panel, or inline with accessories.

What pressures is this device suitable for?

This directly controlled diaphragm regulator is suitable for use with input pressures of up to 16 bar and outlet pressures between 0.5 bar and 12 bar, with a typical flow rate of 1,700L/min.
